New brand 12 channel ekg ecg holter monitoring system
12 Channel Holter Recorder with Software-Fashion Design
Version: ECGLAB Holter Software
* 12-lead/3 channel analysis
* QRS template classification
* Analysis of ST segment changes and evaluation of myocardial ischemia
* Excellent pacemaker analysis
* Obstructive Sleep Apnea Syndrome (OSAS) analysis
* Atrial Fibrillation/Flutter analysis
* Heart Rate Variability (HRV) in time domain and frequency domain
* Open communication interfaces of GDT/XML
* Completely compatible with Del Mar, Century 3000, DMS CardioScan

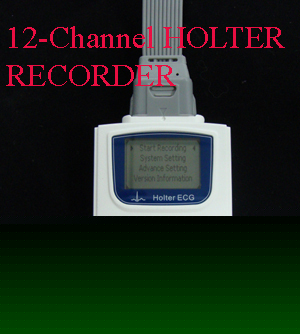

* 12-lead mini LCD Holter recorder
* Compact size, light weight
* Fully programmable, high Fidelity, research grade performance
* Two recording modes: 12-Lead/3-lead can be switched by changing patient cable
* Channel: 2, 3 or 8 digital recording channels
* Resolution: 8, 10, 12 or 16 bit sampling
* Pacemaker sample rate: 10000Hz
* Frequency response: 0.05-60Hz
* Recording time: 24-48 hours, full disclosure, no data compression, 12-lead ECG
* Storage: SD flash card (1GB)
* LCD display: ECG waveform and lead number
* Weight: 42 grams (battery not included)
* Lead: 10 wire patient cable (I, II, III, aVR, aVL, aVF, V1~V6), 5 wire patient cable (any 3 leads in V1~V6)
* Data transfer: Through USB cable or SD card reader
stork1.jpg Stork image by caoruiqi2007 Warranty
stork1.jpg Stork image by caoruiqi2007 Return Policy
All sales are considered final, and we do not accept refunds or replacement.
All defective items must be noticed within 7 days after received.
Item must be returned by Express Mail (as DHL, TNT) to our requested address.
Address: Long Teng Yuan, 5-6-1-402, Hui Long Guan, Changping District, Beijng, 102208,China
