DAC8814, quad, 16-bit, serial-input multiplying dac (2)
Digital-to-Analog Converter (DAC)

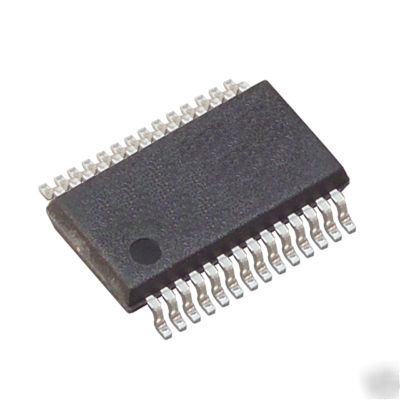

DAC8814IBDBT, Quad, Serial Input, 16-Bit Multiplying Digital-to-Analog Converter (DAC), 28 Pin SSOP, Quantity 2, Texas Instruments
The DAC8814 is a quad, 16-bit, current-output digital-to-analog converter (DAC) designed to operate from a single +2.7-V to 5.0-V supply.
A doubled buffered serial data interface offers high-speed, 3-wire, SPI and microcontroller compatible inputs using serial data in (SDI), clock (CLK), and a chip-select (CS). In addition, a serial data out pin (SDO) allows for daisy-chaining when multiple packages are used. A common level-sensitive load DAC strobe (LDAC) input allows simultaneous update of all DAC outputs from previously loaded input registers. Additionally, an internal power-on reset forces the output voltage to zero at system turn on. An MSB pin allows system reset assertion (RS) to force all registers to zero code when MSB = 0, or to half-scale code when MSB = 1.
* Relative Accuracy: 1 LSB Max
* Differential Nonlinearity: 1 LSB Max
* 2-mA Full-Scale Current with VREF = 10 V
* Midscale or Zero-Scale Reset
* Four Separate 4Q Multiplying Reference Inputs
* Reference Bandwidth: 10 MHz
* Reference Dynamics: -105 dB THD
* SPI -Compatible 3-Wire Interface: 50 MHz
* Double Buffered Registers Enable
* Simultaneous Multichannel Change
* Industry-Standard Pin Configuration
* Digitally-Controlled Calibration
