2STAGE vane vacuum pump continuous duty 3CFM 1/3HP hvac

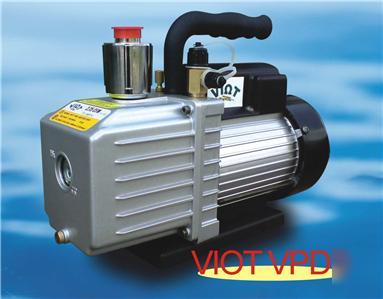

2Stage Vane Vacuum Pump Continuous Duty 3CFM 1/3HP HVAC
you are looking at a BRAND NEW, 2-Stage Rotary Vane Deep Vacuum Pump Continuous Duty, 2.75 CFM with 1/3 HP Motor.
You are Looking at a 2 Stage Rotary Vane Deep Vacuum Pump Continuous Heavy Duty, 2.75 CFM, Model VPD3 Made by VIOT; single phase 110 VAC; 15-MICRON RATING! 1/3 HP power. More features bellow.
This pump may replace Alcatel Pascal 2002/2004/2005i pumps for most their operations
* Aluminum ALLOY CASING: Alloy casing has high heat - dissipation keeping motor and pump cool, light weight and efficient.
* Silicon steal parts where metal fatigue occur, making our pumps more durable.
* Two-Stage Rotary Vane Deep Vacuum Pump
* Direct drive motor allowing easy starting and is maintenance free.
* Elastomeric coupling between the motor and pump results in quiet running and good performance.
* FORCE FED LUBRICATION Provides clean, filtered oil to all internal bearings and wearing surfaces regardless of the pump operation. Cleaner oil reduces ware and break downs.
* Great tool for: System evacuation(Refrigeration or Air Conditioning), Printing, medical, Vacuum Packing, Hot Forming Plastics and other requirements where a high quality pump may be required.
* Built tough to handle heavy duty jobs!
* Oil drain valve positioned at bottom of oil reservoir.
INTAKE PORT: 1/4 inch SAE, and 3/8 inch SAE flair
MAX VACUUM:15 MICRONS, best rating in the industry!
* Come with a bottle of vacuum oil, just dump it in, you are ready to go!
* Power cord come with the pump; power switch on the pump too.
* Ballast valve on top of the pump, make sure to close it if deep vacuum is desired; use this valve to purge clean the system from contamination of volatiles.
* Last, but not the lest, All of our pumps are CE, TUV, and UL listed.M Meet all the safety standards for different countries of the world.
User manual Down Load: click here now! http://viot.us/showmanual.php?model=VPD5
Frequently Asked Questions and Answers: http://viot.us/showFAQ.php?model=VPD5&sw=0
