#kvo rambaudi combination vertical & horizontal mill

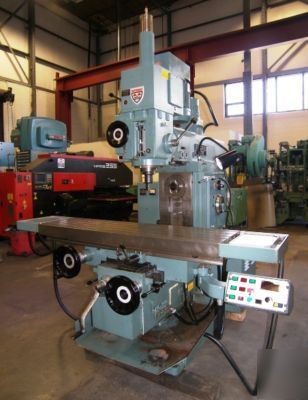

Preowned RAMBAUDI Combination Ram-Type Horizontal Mill with Independent Motorized Vertical Head, Model: KVO, S/N: 133080 (New 1980's)
Number of table t-slots (width)
Rapid traverse rate: longitudinal and cross
vertical (knee)
Automatic and manual quill movement
(18) Spindle speeds, two ranges
Maximum/Minimum distance, spindle to table
Maximum/Minimum distance, spindle center to
Minimum/Maximum distance, spindle center to table
Hardened and ground square ways on all way surfaces
Hydraulically actuated power draw bar for vertical spindle
Power rapid traverse to all three axes
Control panel with digital display of feedrate and potentiometer control of feeds in
(5) Arbors and (2) arbor supports, and drawbolt for horizontal spindle
Tooling cabinet with approximately (16) #50 taper end mill holders & adapters, (1) hold-
down set, and assorted milling cutters
8" DAPRA milling vise with 15-3/4" maximum opening
Self-contained coolant pump motor with flood coolant pan
10 H.P. 3/60/220-440 volt vertical spindle drive motor
12.5 H.P. 3/60/220-440 volt horizontal spindle drive motor
Approximate Dimensions (Machine Only):
