Thomas & betts flex power cable lugs / connectors #4/0

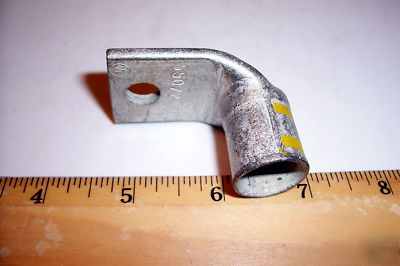

Total (1) T & B Compression 1-Hole Lug for connecting FLEX 4/0 gauge Power Cable
Copper, Tin Plated, One Hole Lug, 90 degree, short barrel, made by T & B for connecting FLEX 4/0 gauge (AWG) power cable or ground lead to a bus bar or anything else. The lug is designed to fit FLEXABLE 4/0 power cable, not the stranded 4/0 power cable. (The individual strands in the FLEX power cable are more numerous and smaller in diameter, making it more Flexible than the standard stranded cable, and overall diameter is slightly larger). It is about 2 inches long and the 90 degree tongue has One hole 3/8 inch in diameter. The tongue is 1 inch wide. The lug can be crimped with Yellow-62 Die. This copper lug is tin plated and has an inspection hole to verify the crimp.
Note: This lug will also connect to #250 MCM gauge regular STRANDED power cable.
You will get 1 lug/connector. The lug/connector has never been used and in very good condition.
