Sencore POWERITE2 safety analyzer isolation transformer

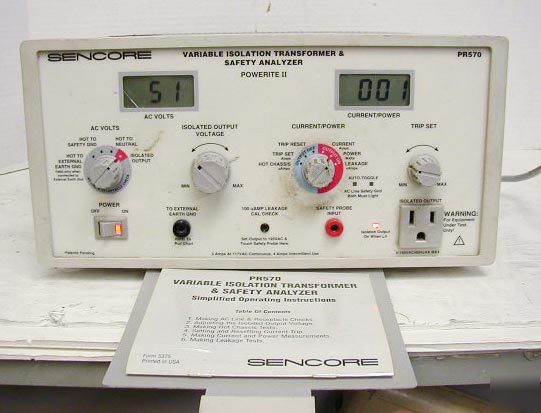

Sencore Variable Isolation Transformer & Safety Analyzer PR570
The manufacturers site is HERE. The brochure is HERE. A whitepaper is HERE. Please read the data and go by that, I am no expert at this type of equipment. There is a crack in the lens on the frontof the AC volts display. It is only on the plastic or glass front and it doesn't affect anything. The LCD is not cracked or broken at all, just the window.
PR570 Variable Isolation Transformer & Safety Analyzer
The PR570 Powerite II is a six-way safety analyzer
1. AC Receptacle Tester & Voltage Monitor
4. Output Current/Power Monitor
PR570 POWERITE II Variable Isolation Transformer & Safety Analyzer
0-140 VAC typical at 117 VAC input, continuously variable
3 amps continuous; 3-4 amps, 470 watts maximum intermittent use (5 minutes on, 5 minutes off)
Less than 12 volts drop in output with 3 amp load at 120 VAC
Measures and displays the selected voltage: Hot to External Earth Ground, Hot to Safety Ground or Hot to Neutral
3% reading 2 counts, calibrated at 117 VAC
Measures and displays voltage at isolated output. Same as Line Voltage Tests.
Adjustable in 10 mA increments
0.3 seconds maximum with 200% overload
Ties high and low lead of primary together and measures leakage to exposed metal with power off
Referenced to either side of isolated output jack (Automatically toggles high and low line and opens and closes safety ground and displays highest reading.)
100 A, 3% of reading, 2 counts with isolated output at 120 VAC
Adjustable current trip, 1 to 4 Amps
105 to 125 VAC, 60 Hz, 4 amps idle current with no output load
These instruments are straight from corporate America, taken out of the service center of a huge retailer that closed up. A name you know!
I tested this and it is working properly.
No manuals, probes, cabling, software, disks or other items are included with these, just the instrument and it's power cord.
