> New interconect devices, idi S3H4G spring contact probe

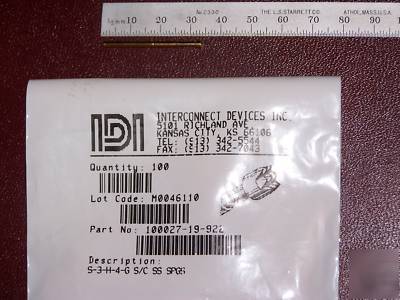

New interconect devices, idi S3H4G spring contact probe
This Item is "New" and in Excellent Working Condition!!
Recommended Minimum Centers - .125 (3,18)
Current Rating - 5 amps continuous
Spring Force - 4.0 or 7.0 oz. @ .170 (4,32) travel
Contact Resistance - < 20 m
Recommended Working Travel - .170 (4,32)
Maximum Travel - .250 (6,35)Catalog Product
Contact Barrel - Nickel/silver, gold plated
Spring - Stainless steel, gold plated
Plunger - Full-hard beryllium copper, gold plated over nickel
Receptacle - Nickel/silver, gold plated, gold plated post
Product Specifications:
Test Spring Probe
Connector Type:Test Point
Contact Material:Nickel
Contact Plating:Gold
Leaded Process Compatible:Yes
Peak Reflow Compatible (260 C):Yes
Current Rating:5A
Length:1.310"
Spring Force Initial:1.8oz
RoHS Compliant: Yes
Guaranteed, 7 Day Return Policy
