Owon HDS1021M 1 channel 20 mhz scopemeter 100 msa/s

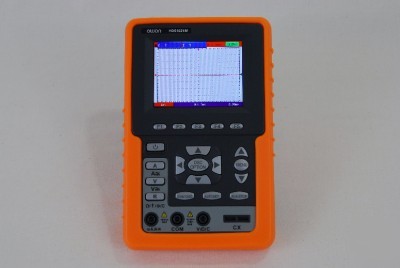

Owon HDS1021M 1 Channel 20 MHz Scopemeter 100 MSa/s
The Owon HDS1021M is a lightweight, durable scopemeter acts as a single channel digital 20 MHz oscilloscope, and a 4000 count precision digital multimeter. It comes complete with oscilloscope probes and multimeter probes, and several handy extras such as an adapter to easily test capacitors. The oscilloscope functions are intuitive and familiar to work with, and setup is quick and easy. The multimeter has Voltage, Current, Resistance, and Capacitance ranges.
Owon Handheld 20 MHz Digital Scopemeter
The HDS2102M can be attached to your PC via USB with the included software. It also comes with a carrying case, the two types of probes, the AC power adapter, USB cable, Manual, and the software CD.
* 100MSa/S real time sampling rate
* 4000 count DMM resolution with AC/DC at 400V/1000V, 20A
* 3.8 inch TFT color LCD display
* 7.4 V, 6 hour Li-ion battery
* AC Power 100V-240V, 50/60 Hz
5ns/div~100s/div,step by 1~2.5~5
5ns/div~100s/div,step by 1~2~5
Average>16: (5% reading+0.05div) for ?V
Preshoot,Risetime,Falltime,+Width,-Width,+Duty,-Duty, Delay A B ?
Supply:100V~240V AC,50/60Hz DC input: 8.5VDC, 1500mA. Battery: 6 hours
