Environmental temperature/humidity controlled spray box

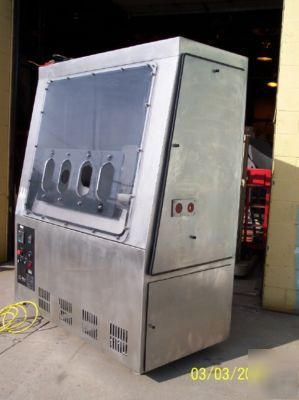

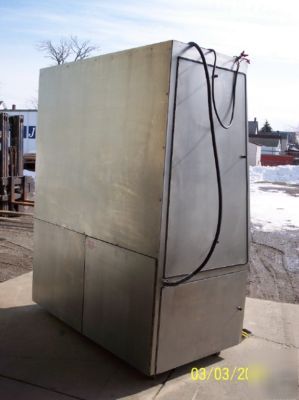

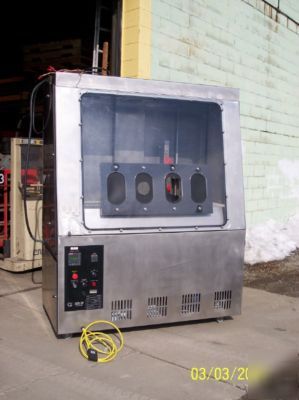

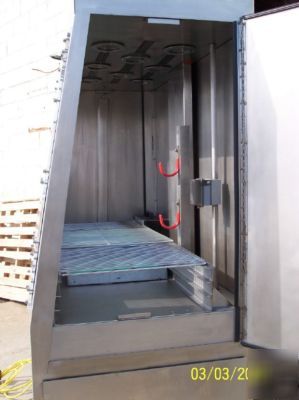

Environmental Temperature & Humidity Controlled Spray Box - Stainless Steel

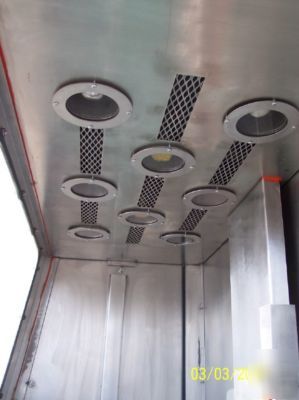

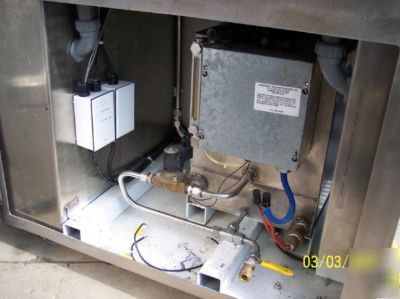

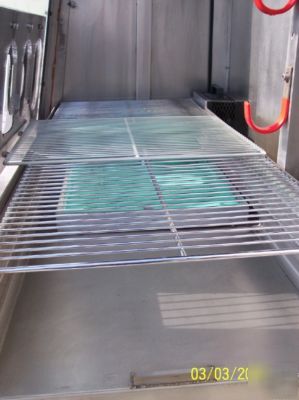

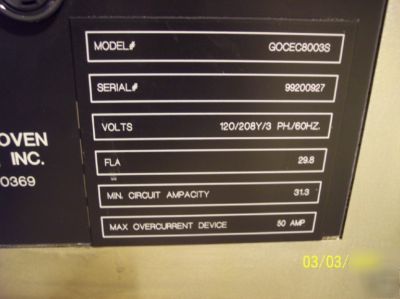

Style: Self-Contained on Castors.Make: Georgia Oven Co., Inc.Model: GOCEC8003S ( Specially Built For Process )Temperature Range : 95 Degree F to 140 Degree F, 10% - 50 % RHUniformity +/- 2 Deree FAdjustable Air Flow from 20-100 Cfm @ .50 static pressureEstimated time to reach desired set-point @ 30 Min. from ambient temp.Fla 29.8S/N 99200927Year 2001Material Cabinet 304 Stainless Steel , 14 GaugeBase-Platform Mild Carbon Steel , 12 GaugeVoltage: 120 / 208Y / 3 Phase, 60 Hz.Min. Circuit Capacity 31.3 Amp.Max.Overcurrent Device 50 Amp.Heating System: Watlow Tubular Heater, Incoloy 800 sheathed sinuated configuration.Exterior Dimensions: 66" Wide x 34 " Deep x 83 " HighUsable Dimensions of Spray Area: 60 " Wide x 30 " Deep x 42 " HighMade to UL StandardsConstruction Codes : Class 100,000 Clean Room , NEC,NEMA,OSHA,ANSIAir Flow : Vertical Cross-Flow; Air flows from ceiling to floor, top mounted adjustable HEPA filter intake with micron pre-filter, rear mounted micron filtered adjustable exhaust port.Humidity System: Produced by an ultrasonic generator; fed by seperate removal tank. Dehumidification by evaporator coil; receiver tank piped to removal tank.Approx. Weight 1050 Lbs. Brief Summary:The purpose of this spray box is to provide a temperature and humidity controlled environment, to keep solution at a specific temperature and control the rate of drying. The ability to have an uninterrupted spray pattern is critical. A uniform coating thickness is desired during the spray process.** Was used to apply water-based solutions to objects. ** Note: This unit has ( 6 ) Six sealed lights, Two ( 2 ) Process LED Lights; 120 Volt Inside Cabinet Outlets; Adjustable Work Height 29", Gasketed Side Doors ( 2 ) Two Locking. Vertical Hand Slits-( 4 ) Four. , An all self contained unit. Unit is in like new condition; May be inspected by appointment in Buffalo, New York.
