3- rotary switches, grayhill, n.o.s
LOT OF 3 N.OS Rotary Switch Resolver, Grayhill,

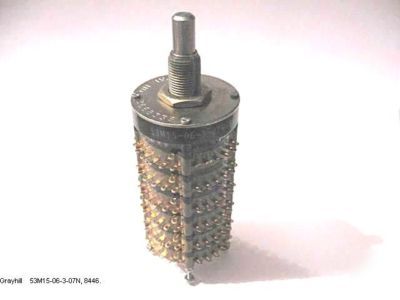

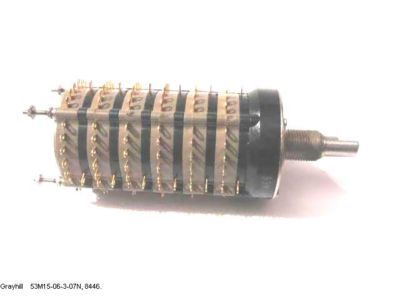

3 Precision Rotary Switches made by Grayhill USA.
Grayhill p/n: 53M15-06-3-07N, 8446.
M = Military Style Style*: Letter(s) from the Choices and Limitations chart
15 = Angle of Throw: Must agree with Series Number
06 = Number of Decks: As limited by Choices and Limitations chart
3 = Poles Per Deck: As limited by angle of throw
07 = Positions Per Pole: requires 02 as a minimum to the maximum allowable
N = Type of Contacts: N = Non-shorting; S =Shorting
