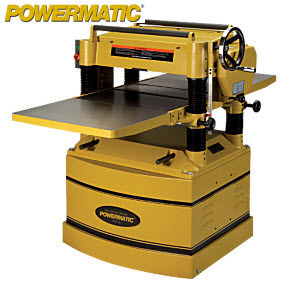

Powermatic model 209HH 20" planer with byrd cutterhead
New in Factory Crate! (5HP 1PH 230V)
Model Number: 209HH / Part Number: 1791315
This Item regularly retails at $4,300! Great opportunity to save money!
* The Byrd SHELIX helical cutterhead with 99 knife inserts provides smoother, quieter cutting and finer finish than conventional systems
* 5HP motor and 20" planing capacity for heavy duty work
* Fully enclosed base cabinet with integrated casters for shop mobility
* Cast iron table with extensions creates a big 55-1/2" x 20" working area
* Four feed speeds - 24 and 31 FPM, 16 and 20 FPM with gear change - provide versatility
* Feed rollers and cutterhead supported by full cast iron head assembly for rigidity
* Byrd helical cutterhead with knife inserts
* Maximum Planing Thickness - 8 "
* Maximum Depth of Cut - 3/32 "
* Minimum Planing Length - 6 "
* Cutterhead Diameter - 3 3/16 "
* Cutterhead Speed - 5000 RPM
* Feed Rate - 24 and 31 FPM (16 and 20 FPM with gear change)
* Number of Knives - 99 Four-sided inserts
* Table Size - 20" x 55 1/2"
* Dust Collection Minimum CFM Required - 900 cu.ft/min
* Readout Scale - inch/ metric
* Overall Dimensions - 26 x 36-5/8 x 41-3/8
