110 ton x 12' pacific hydraulic press brake

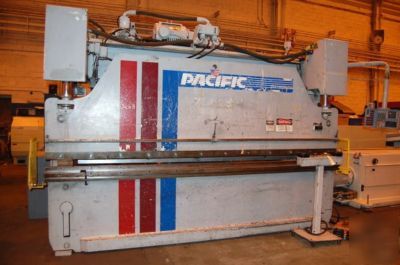

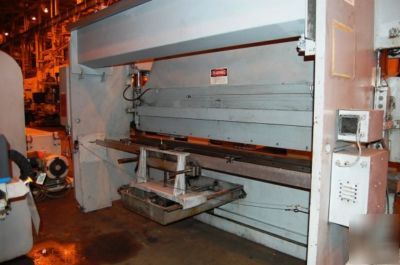

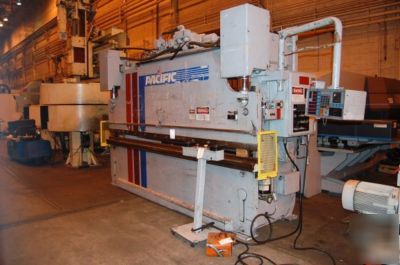

110 Ton x 12' Pacific Hydraulic Press Brake
Tonnage Capacity ...................... 110 Ton
Overall Length Of Bed And Ram ......... 12'
Distance Between Housings ............. 10'6"
Bending Capacity (1-1/8" Die Opening) . 10 Ga.x12'
Stroke Length ......................... 8"
Open Height ........................... 13"
Shut Height ........................... 5"
Throat Depth .......................... 7"
Drive Motor ........................... 25 H.P.
Three Speed Hydraulic Power Unit

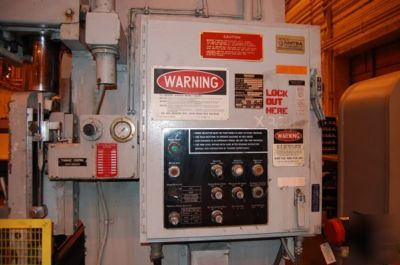

Pedestal Mounted Palm Button Controls
