X-rite 428 color reflection densitometer model 428
X-RITE 428 COLOR REFLECTION DENSITOMETER Model 428
w/ AC Adapter - Batteries - Case

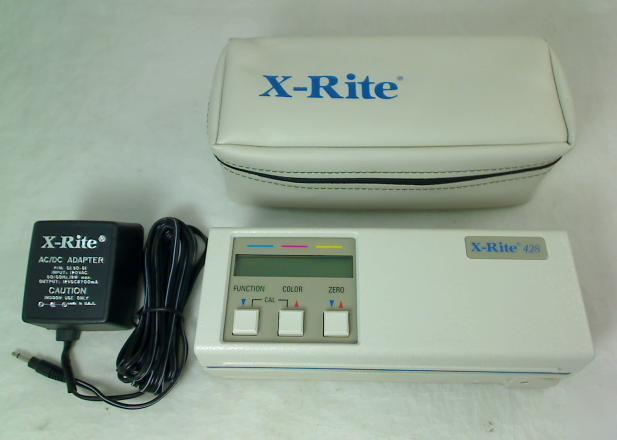

X-RITE 428 COLOR REFLECTION DENSITOMETER Model 428, AC ADAPTER, BATTERIES, CASE
Computerized Color Response (CCR)
The versatile 428 accommodates multiple status responses. Model 428G can take measurements using ANSI-Status T response, which is compatible with the GCA T-reference (T-Ref) standard. You can also select the traditional X-Rite graphic arts response, Status G. Model 428E features European Status E and Status I (displayed as N for Narrow Band Glass Interference Type) responses.
QuickCal One-Step Calibration
The 428 s Quick-Cal feature makes calibration fast and easy. You simply select the Q-Cal mode on the instrument, then measure the white patch on the supplied calibration target card. You can also get complete agreement with other densitometers using the three-color response calibration.
To increase battery life, the 428 automatically turns itself off if it has not been used within 45 seconds; and it automatically turns back whenever a key is pressed or measurement taken. Tests have shown that over 4,500 readings can be taken on one charge of new batteries.
A lithium battery stores calibration data and measured values when the densitometer s primary rechargeable batteries are depleted or removed.
Equipped with Auto Color Select, the 428 eliminates manual rotation of a filter wheel and related erroneous measurements. All colors are measured simultaneously, then the correct reading is displayed in less than one second.
Large LCD display clearly identifies measurement data and mode function. No need for numeric codes to identify this information.
Three large buttons place all function controls at operator s fingertips.
Small 1.7mm aperture (GS or ES model) for reading reducedsize color bar patches.
AC adapter is provided to allow readings while batteries are being recharged.
Replaceable optics allow you to switch between G and E response.
Two-way RS-232 interface operates at 1200 baud, or one of several other baud rates.
Model: 428 COLOR REFLECTION DENSITOMETER
