Weinschel 1506 power splitter

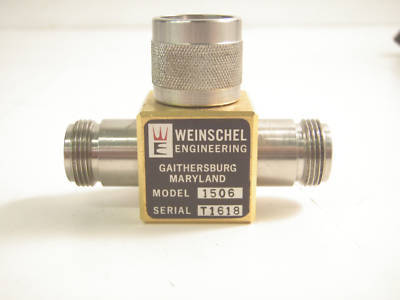

Weinschel 1506 Power Splitter ( Aeroflex )
* Accurate Division and Low Frequency Sensitivity
- The symmetry of output power between the two arms is excellent across the frequency range.
- Low temperature and power coefficient sensure attenuation stability.
- Each divider is calibrated at four frequencies, and the data is supplied on a permanently attached test data plate.
- Symmetrical 6 dB division permits any port to be used as input.
1 watt CW, 1 kilowatt peak (5 sec pulse width, 0.05 % duty cycle)

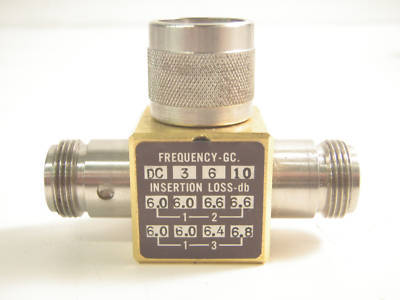

INSERTION LOSS (between input & one output arm)
: 6 dB nominal, -0.2, +1.2 dB maximum to 10.0 GHz
3, interchangeable for input and output
5 maximum between ports (J2 & J3) with input connector (J1).
