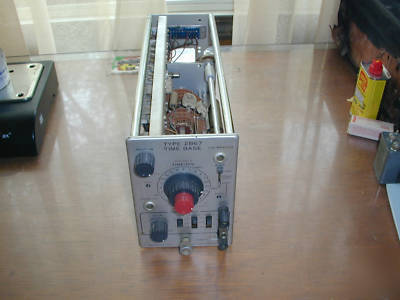

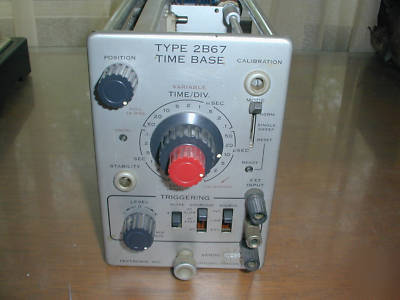

Tektronix 2B67 time base plug in for 560 oscilloscope
This plugin is available online and runs around $50.00.

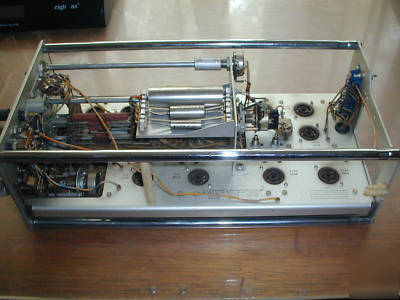

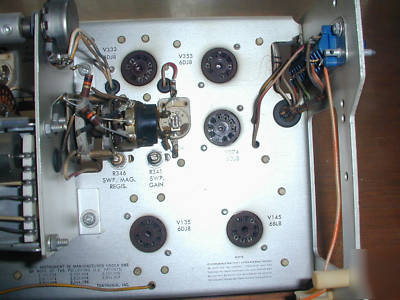

The tubes have been removed from this pugin so I am unable to test it as I would like. However, the client I am selling this for believes it
was in working order before the tubes were removed. Let s face it some of the tubes are worth more than the plugin.
I found the information below at http:// /node/20039 :
This unit provides time base deflection for Tektronix 560 Series oscilloscopes.
It provides a triggered or free running sweep, calibrated or continuously variable.
The sweep may be triggered internally from either the vertical signal or the power line, or externally.
Either repetitive or single sweep operation may be selected.
This unit is normally used to provide the horizontal sweep for 560 Series oscilloscopes, but may be used to provide a vertical sweep, if desired.
The unit is also provided with an input for external signals.
Triggering Signal Requirements
Tektronix 2B67 Specifications:
Calibrated Time Base: 1 s/div to 5s/div
