Lns hydraulic supply for single tube bar feed
Our Asset #:KSC144 / 0026 Qty available:1

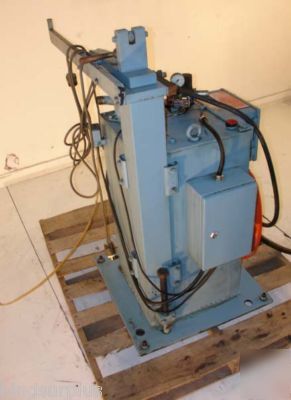

LNS Hydraulic supply for Single Tube Bar Feed
Est. Rigging fees $35 per 1,000 lbs: Est. Packaging: $ 25.00
Condition: Used looks good Guaranty: See our 10 day DOA money back Guaranty!
Full Description or BackgroundUSED LNS Bar Feed Tag Photos or information
Model: THB65-3.6 Serial #: 9965 Year: 1982
HP/Amp/KW/KVA:6 AMPS/ 600 KVA Voltage: 380 Phase: 3
Other Info: We are not dealers or experts of assets we liquidate. KSC personnel may not have the expertise to detect errors when reading a tag. The above information is entered because the tag photo may not be clear. This info should is for reference only, KSC can not guaranty this info. Contact original manufacture for detailed information on this asset,
Asset Location: DRW1: Main Del Rio TX. ZIP 78840 Area: RECEIVING
Length: 42" Width: 22" Height: 42"
a. Est. Wt. each: 650LBS b. Est. pkging wt: 65 c. Est. total wt: 715
Bar feed centrically guiding device for lathe apparatus
A hydraulically operated bar stock feeder having a hydraulic circuit in which a hydraulic pump drives a hydraulic motor which in turn operates the bar feeder carriage. The hydraulic pump operates a hydraulic cylinder with a designed live center cup attached to the end of the cylinder rod. The hydraulic circuit has a control valve with hydraulic detent which will lock in a forward or backward position. While the control valve is locked in forward position, fluid is allowed to go to a relief valve at the hydraulic motor on the carriage. The relief valve reduces the pressure going to hydraulic motor and deceleration valve. When the carriage reaches the end of track the deceleration valve is depressed, which, through another relief valve at a lower pressure starts the cylinder rod moving outward. Both the cylinder and carriage motor are able to set (not move) under pressure and will start automatically when the lathe chuck is open. When the cylinder is fully extended, then the work piece will be used up; thus to return the system to an initial starting condition, manually reverse the hydraulic valve and the cylinder rod will retract and also the hydraulic motor will retract to a normal starting position. The live center with its unique cup design works in conjunction with an interlocking retainer shield. This design maintains centricity eliminating bar stock vibration when lathe chuck is turning. As the bar stock length decreases to a point allowing a shield sleeve to come in contact with the lathe tube, the shield automatically stops, the live center continues into the lathe tube with the bar stock. The live center cup expands automatically when entering the lathe tube maintaining centricity of the bar stock.
