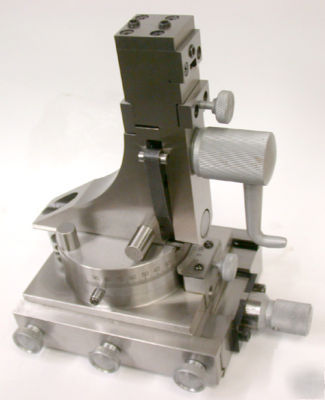

New gromax 8" grinding wheel dresser tdc with case
Fully INSPECTED & TESTED in the USA.
1 Brand NEW GROMAX Universal WHEEL DRESSER TDC with case and operation instructions.
The wheel dresser can dress 2 angles tangent to a radius in one continuous motion with 0.0001" (0.002mm) accuracy
The wheel dresser with a micrometer feed 13/16" (38mm) travel
Setup to dress 2 angles takes less than 15 seconds. 1 radius plus 2 angles in about 3 minutes. Made of hardened & ground tool steel
Dressing capacity up to 8" wheel Range of convex radii 0 ~ 1.500"
Range of concave radii 0.030" ~ 1.500" Height to center of diamond 61/2"
Overall height 7" Base dimensions 4-3/4"x3-1/2"x1-1/4"
Optional Accessories: Diamond Dresser DS-010 ( 1/4"x3.15"/.2CT) $25.00
Measuring quasi-pin dia.: 0.394"
Max. swing distance cutter: 0.787"
Max. size of arc that may be dressed is 1.575"
Max. translation of feed: 0.787"
Size (L x W x H): 6.14" x 4.13" x 7.08"
