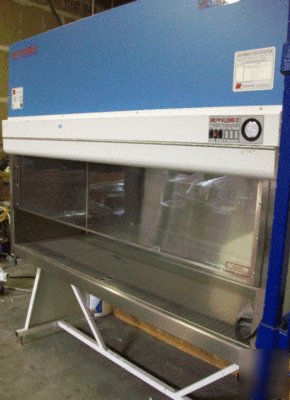

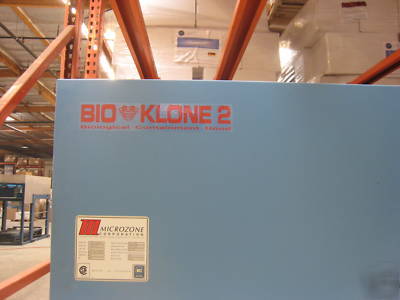

Microzone bioklone 2: biological safety cabinet
The exterior is finished in special chemical resistant textured paint except for the all-stainless steel base plenum section which houses a drain valve.
The interior work volume is manufactured from type 304 stainless steel and all corners
are coved with a 1/2 radius, continuously welded and polished.
The work tray is designed to accommodate minor spills. The work tray and the front air foil are one piece
construction and is easily removable.
A hinged faceshield is set into a recessed stainless steel frame and it is removable with quick-release pivots.
Automatic dampers assist during opening/closing operations.
All HEPA filters are rated 99.99% efficient at 0.3 microns and are serviced via the front access panel.
The cabinet is designed such that it is not necessary to move the unit for any servicing/certification operation.

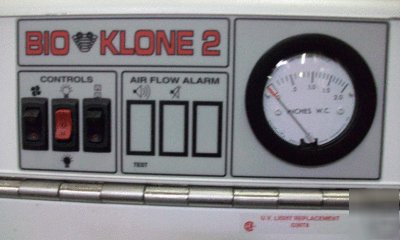

The control panel is located at an accessible level and is serviced without decontaminating the
cabinet. The control panel incorporates a digital DMC soft start circuit motor control
panel with on/off feature for blower/white and ultraviolet light switch and interior duplex outlet.
Integral circuitry provides constant monitoring of voltage to the motor, current motor draw, line
voltage frequency and on-board diagnostics.
In the event of a system fault, the system features flash codes on LED display indicating area of failure.
The electronic SPM constant pressure gauge monitors system pressure. This system reports the static condition of the integral filter systems both visual and audible with an alarm feature in the event of drop in static, motor failure or increased pressure.
The cabinet operates in a negative pressure mode, that is, the entire exterior shell of the cabinet will never be subjected to a positive pressure by a contaminated aerosol.
The base section is supplied in a modular configuration for ease of on-site accessibility and assembly.

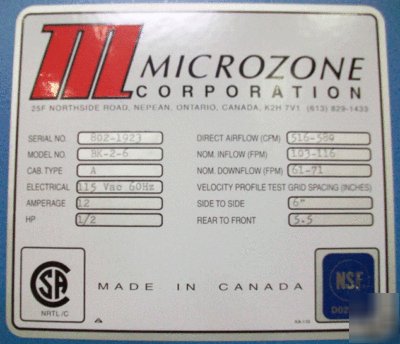

Electrical termination is a 10Ft. long grounded cord/plug with a total electrical consumption of 115V, 12A, 60Hz.

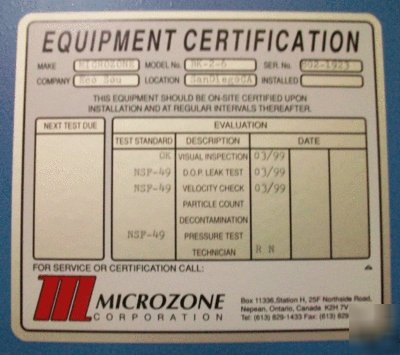

The cabinet is color co-ordinated blue/white and is CSA approved.
Standard accessories include: one gas petcock located on left hand side (Part No. B0460646), one duplex electrical outlet located on the right hand side of the rear wall (Part No. B046063), and one ultraviolet light (Part No. B046057).

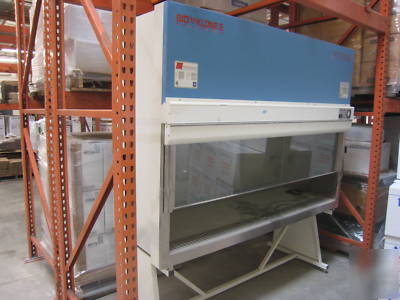

6 Microzone BK2 series Biological Safety Cabinet provides excellent user, product and environmental protection as defined by NSF49. These cabinets are suitable for use in Biosafety Levels 1, 2, and 3 and other applications where the control of airborne particulates and aerosols is critical. Class II, Type A2. Includes stand.
Seamless exterior with chemical resistant textured paint finish
* All smooth front access service panel
* Recessed face shield with large view screen
* Modular base support stand with integral foot rest
* Large work volume with all coved stainless steel interior liner
* Easy to remove work surface
Interior Dimensions: 70 x 27 x 28 inches
Exterior Dimensions: 76 x 30 5/8 x 83 inches
