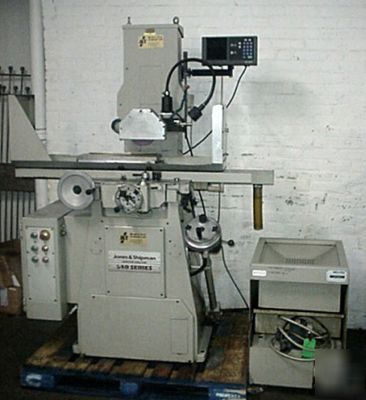

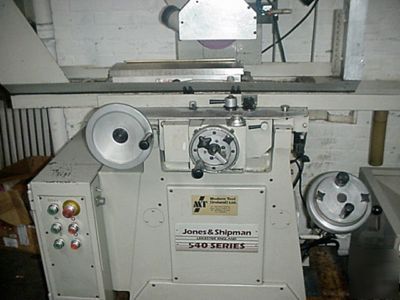

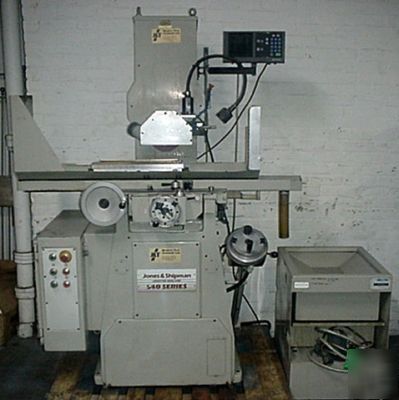

J&s model 540-p 6" x 18" hydraulic surface grinder


Technical Specifications: * Item # 6925-420
* Working surface of table: 18" x 6"
* Maximum longitudinal table travel: 19"
* Maximum cross travel of table: 6-3/4"
* Table speed range: 5 to 40 feet per minute
* Cross feed range per stroke at each reversal: .01"-.07"
* Maximum vertical traverse of wheel head: 11"
* Size of grinding wheel: 7" x 1/2" x 1-1/4"
* Estimated weight: 1500 lbs.
EQUIPPED WITH: * Accu-Rite 2 Axis Digital Readout System
* 6" x 18" fine pole permanent magnetic chuck
Contact Cliff Davis at 401.724.3200 during normal business hours (EST) or email ****@goldmachinery.com referencing 6925-420.
We will partially crate this item for $345.00 or we will skid and cover when possible for $195.00. As always we will load your truck from our dock at no extra charge. This item may also be transported via flat bed truck. We will assist in rates if requested.
