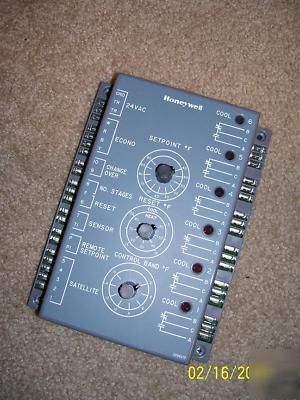

Honeywell W7100A1053 3 controller
Controller is new, it has never been installed or had connection made but is not in original packaging and does not come with instructions. Unit is several years old and was stored as backup unit.

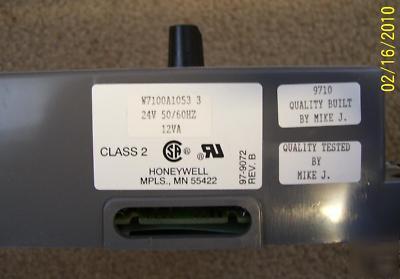

Honeywell W7100A1053 3 24 V 12 VA 50-60 40-90 DEGREE F CLASS 2 / 6 STAGE COOLING Condition: New
W7100 Controller maintains an average discharge air temperature in variable air volume (VAV) cooling systems by modulating an economizer and sequencing stages of mechanical cooling.
The W7100 can be applied to electric makeup air and other systems requiring discharge air control of multistage heating or cooling.
Staging capacity of the W7100A,C can be extended six stages using a W7101A Satellite Sequencer.
When power is interrupted, the system cycles to all stages off.
When power is restored, the economizer will first be modulated open (if enthalpy is suitable), then stages of mechanical cooling will be sequenced on.
If enthalpy is not suitable for economizer operation, the first stage of cooling or heating is energized within five minutes.
Reset signal from either space sensor or outdoor air sensor.
Description: 20 to 30 Vac Discharge air temperature controller
Application Size: 0 Heat / 6 Cool
Contact Ratings: NO 240 VA inrush @ 24 Vac, 60 VA running @ 24 Vac
Contact Ratings: NC 75 VA inrush @ 24 Vac, 30 VA running @ 24 Vac
Contact Ratings: NO 750 VA inrush @ 120/240 Vac, 75 VA running @ 120/240 Vac
Contact Ratings: NC 240 VA inrush @ 40 Vac, 30 VA running @ 24 Vac
Electrical Connections: 1/4 in. quick-connect male terminals
Power Consumption: 12 VA at 24 Vac, 50/60 Hz (max).
Setpoint Temperature Range (F): 40 F to 90 F
Operating Temperature Range (F): 40 F to 90 F
Dimensions: 8 5/8 in. high x 6 1/2 in. wide x 3 in. deep
Comments: Additional stages of heating and cooling can be achieved by adding a W7101 Satellite Sequencer
