Dual box manometer set for water flow measurement
Manometer set manufactured by Crane Perflow for measurement of differential pressure in water systems at commissioning valves, metering stations, etc. This item is a very clean example and is in excellent working condition.
It has recently been professionally refurbished and cleaned at a cost of 100 and has not been used since.

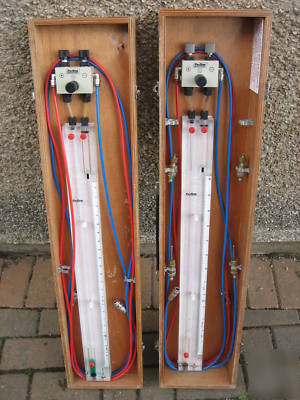

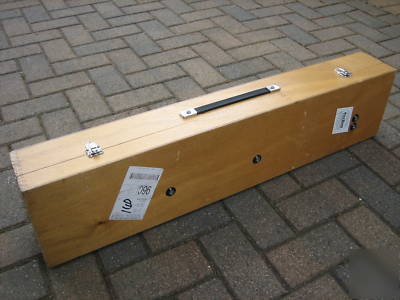

The manometer set comes in a quality wooden case with a carry handle which splits into two separate manometer blocks for measurement of pressure ranges from 0.0kPa to 65.0kPa . One manometer measures in the range 0.0 to 4.6kPa using fluorocarbon. The second manometer measures in the range 0.0 to 65kPa using mercury.
Each manometer is tubed to a 3 valve isolating/equalising manifold.
The case is supplied complete with a pair of mechseal probes and a pair of binder needles to allow connection to most makes of balancing/commissioning valves.
Normal operating limits: 80 C and 10bar.
Manometer case dimensions: 920mm (L) x 210mm (W x 130mm (D).
Due to the nature of this item, collection in person in Edinburgh, Scotland is preferred, but postage by courier can be arranged.
Should you have any questions on this item, please feel free to contact me.
