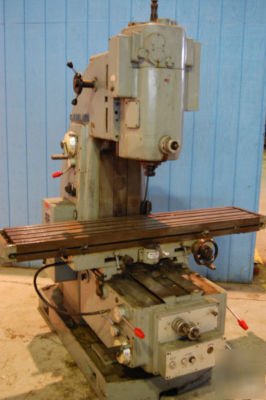

#3V cleveland vertical mill #25794
New 1970, Serial No 3506, Model 3V
Table Working Surface, W x L........... 14" x 65"
Table Longitudinal Travel (X-Axis)..... 51"
Saddle Cross Travel (Y-Axis)........... 14"
Knee Vertical Travel (Z-Axis).......... 20"
Spindle-Head Vertical Travel (Z-Axis).. 4"
Table Swivel, Left Or Right............ 45-DEGREES
Head Swivel, Both Directions........... 180-DEGREEWS
Spindle-Center to Column............... 22.5"
Spindle-Nose to Table, Minimum......... 0"
Spindle-Nose to Table, Maximum......... 20"
(12) Spindle Speeds, Range............. 55 to 1655 RPM
(12) Longitudinal and Cross Feeds...... 3/4 to 25 IPM
(12) Vertical Knee Feeds, Range........ 3/8 to 12.5 IPM
Power Rapid Traverse, Long & Cross..... 120 IPM
Power Rapid Traverse, Vertical......... 60 IPM
Feed Motor, Horsepower................. 3 HP
