> Watts fbv-3 2-pc full port brass ball regulator valve

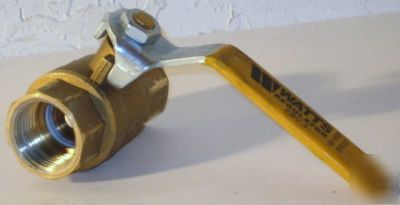

Watts fbv-3 2-pc full port brass ball regulator valve
This listing is for a brass ball valve.
* Model / Part #: FBV-3 (FBV3)
* Other Listed Specs: 150-WSP / B16.33
* 2-Piece, Full Port, Brass Ball Valves
* Size(s) : 1/4 to 3 in. (8 to 80mm)
Series FBV-3, FBVS-3 2-Piece, Full Port, Brass Ball Valves are used in commercial and industrial applications for a full range of liquids and gases. It consists of a bottom-loaded blowout-proof stem, virgin PTFE seats, thrust washer, and adjustable stem packing gland, stem packing nut, chrome plated brass ball, brass adapter, and steel handle. Model FBV-3 has female NPT end connections. Model FBVS-3 has solder end connections. Pressure Rating: For 1/4 to 2 in. - 600psi WOG; 150psi WSP; For 2 1/2 to 3 in. FBV-3 - 600psi WOG; 125psi WSP; For 2 1/2 to 3 in. FBVS-3 - 400psi WOG; 125psi WSP.
For more information, please visit Watts' product page at http:// /pro/_productsFull_tree.asp?catId=64&parCat=196&pid=545&ref=2
This is used and in good condition. Guranteed to be in proper working order.
