Fluke dsp-FTA440 mm fiber gigabit dsp 4000 4300 FTA440

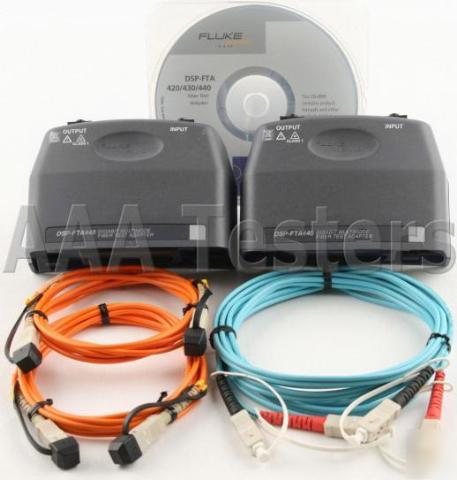

* (2) Fluke DSP-FTA440 Gigabit Fiber Adapter
* (2) MM SC to SC Fiber Cables
* Fluke Test Reference Card 50/125 m SC-SC
Fluke Networks DSP-FTA440 Gigabit Multimode Fiber Module Set For Fluke Networks DSP 4000, 4100 & 4300 Digital Cable Analyzer
Test & Certify 850nm & 1300nm Multimode Fiber
Fluke DSP-FTA440 Gigabit Multimode Adapter
Combining the DSP-FTA440S with a DSP-4000 DSP-4100 or DSP-4300 provides automatic, dual-fiber loss testing and certification by using a VCSEL laser at 850 nm and a Fabry-Perot (FP) laser at 1310 nm wavelengths. It also measures the length of fiber links and certifies the results against the Gigabit Ethernet standard.
In addition, the DSP-FTA440S allows bi-directional testing on both fibers under test and saves results for both directions in the same record. Utilizing Fluke Networks' comprehensive CableManager Software you can easily save all fiber link data electronically for results management and report generation.
Why do I need the DSP-FTA440S Gigabit Multimode Fiber Test Adapter if I already have an LED multimode tester?
* Networks running Gigabit Ethernet over multimode fiber, use a light source called a Vertical Cavity Surface Emitting Laser (VCSEL) for data transmission at 850 nm. More cost-effective than the traditional laser, a VCSEL provides greater bandwidth than possible with LED light sources.
With a VCSEL source, the light energy is concentrated in the center of the fiber, whereas an LED source fills the entire fiber with light energy. The farther the light energy is away from the center of the fiber, the more likely it is to escape the fiber and show up as power loss.
Therefore, when LED testers are used to test gigabit multimode fibers, they tend to show more power loss than is actually present in a network using a VCSEL transmission source.
With the very tight loss budgets for Gigabit Ethernet, you could actually get a FAIL reading with an LED test, when the link is really working. This could result in time wasted trying to fix a problem that doesn't exist.
When you test with the VCSEL-based DSP-FTA440S, you can be sure that you will see the actual loss that is present in the network.
* Yes. The DSP-FTA440S Fiber Test adapter contains a 50.0 m m internal launch fiber, so it is perfect for testing 50.0 m m fiber. And it works just as well for 62.5 m m fiber because the light is being launched from a smaller fiber (50.0 m m) into a larger fiber (62.5 m m), capturing all of the light energy. This is true for both 850 nm and 1300 nm wavelengths.
* Yes. The patch cord should always match the core size and type of the fiber under test. A mismatched patch cord may cause inaccurate loss measurements at the mismatched fiber-to-fiber interface.
* Are built rugged to withstand the drops and other mishaps that occur in today's network installation environments.
