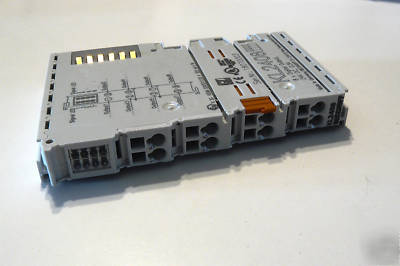

New beckhoff KL2408 8 channel digital output terminal
The KL2408 (positive switching) and KL2488 (negative switching) digital output terminals connect the binary control signals from the automation unit on to the actuators at the process level with electrical isolation. The KL2408/KL2488 variants are protected against reverse polarity connection. They handle load currents with outputs that are protected against overload and short-circuit. The Bus Terminals contain eight channels which indicate their signal state by means of light emitting diodes. They are particularly suitable for space-saving use in control cabinets. The connection technology is optimised for single-ended inputs. All components have to use the same reference point as the KL2408 or KL2488. The power contacts are looped through. In the KL2408 model, the outputs are supplied by the 24 V power contact. In the KL2488 model, they are supplied via the 0 V power contact.
KL2408 | KS2408, KL2488 | KS2488
0.5 A (short-circuit-proof) per channel, total current 3 A
500 Vrms (K-bus/field potential)
Current consumption power contacts
Bit width in the process image
no address or configuration setting
conforms to EN 60068-2-6/EN 60068-2-27/29
conforms to EN 61000-6-2/EN 61000-6-4
Protect. class/installation pos.
