New fluke 114 electrical trms multimeter * *

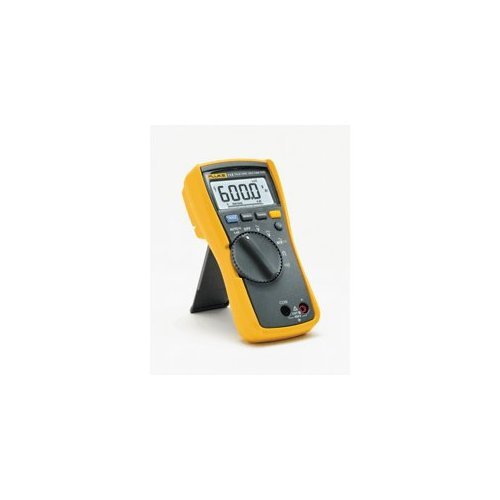

Fluke 114 Electrical TRMS Multimeter *NEW*
Designed by electricians. Engineered by Fluke. Compact true-rms meter for electrical troubleshooting. The Fluke 114 is the troubleshooting tool for "go/no-go" testing. It includes a feature to prevent false readings caused by ghost voltage. Fluke 114 True RMS Digital Multimeter Features: True RMS .5 ccuracy 28% larger digits 6000 counts Bargraph Backlit Min-max recording Display hold Ergonomic, compact shape Voltage Resistance Detect AC voltage without carrying a second tool Works down to 24VAC in bare wire applications Automatically determines AC or DC voltage eliminating guesswork Reduces chance of false readings due to ghost voltage Safer troubleshooting Specifications: Maximum voltage between any terminal and earth ground: 600 V Surge protection 6 kV peak per IEC 61010-1 600 VCAT III, Pollution Degree 2 Display Digital: 6,000 counts, updates 4 per second Bar graph: 33 segments, updates 32 per second Operating Temperature: -10 C to 50 C Storage Temperature: -40 C to 60 C Battery type: 9 volt Alkaline, NEDA 1604A/ IEC 6LR61 Battery Life: 400 hours typical, without backlight Accuracy Specifications DC millivolts Range: 600.0 mV Resolution: 0.1 mV Accuracy: ([% of reading] [counts]): 0.5% 2 DC volts Range/Resolution: 6.000 V / 0.001 V Range/Resolution: 60.00 V / 0.01 V Range/Resolution: 600.00 V / 0.1 V Accuracy: ([% of reading] [counts]): 0.5% 2 Auto volts Range: 600.0 V Resolution: 0.1 V Accuracy: 2.0% 3 (dc, 45 Hz to 5
