> MC34072P op amp 1 piece

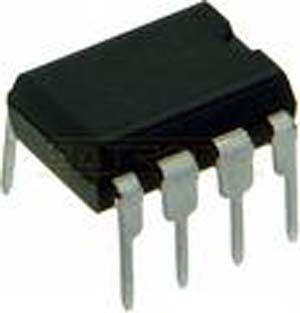

MC34072P op amp 1 piece
Quality bipolar fabrication with innovative design concepts are employed for the MC33071/72/74, MC34071/72/74 series of monolithic operational amplifiers. This series of operational amplifiers offer 4.5 MHz of gain bandwidth product, 13 V/_s slew rate and fast settling time without the use of JFET device technology. Although this series can be operated from split supplies, it is particularly suited for single supply operation, since the common mode input voltage range includes ground potential (VEE). With a Darlington input stage, this series exhibits high input resistance, low input offset voltage and high gain. The all NPN output stage, characterized by no dead band crossover distortion and large output voltage swing, provides high capacitance drive capability, excellent phase and gain margins, low open loop high frequency output impedance and symmetrical source/sink AC frequency response.
* Fast Settling Time: 1.1 _s to 0.1%
* Wide Single Supply Operation: 3.0 V to 44 V
* Wide Input Common Mode Voltage Range: Includes Ground (VEE)
* Low Input Offset Voltage: 3.0 mV Maximum (A Suffix)
* Large Output Voltage Swing: 14.7 V to +14 V (with 15 V Supplies)
* Large Capacitance Drive Capability: 0 pF to 10,000 pF
* Low Total Harmonic Distortion: 0.02%
* Excellent Phase Margin: 60
* Excellent Gain Margin: 12 dB
* Output Short Circuit Protection
* ESD Diodes/Clamps Provide Input Protection for Dual and Quad
