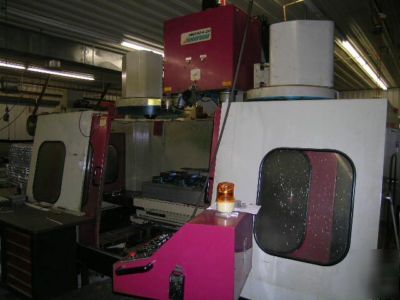

Johnford VMC916-2H twin spindle machining center
WORKLOAD on TABLE:MAXIMUM 660 Lbs
LONGITUDINAL TRAVEL:X Axis 40 "
TABLE to SPINDLE:9.2" min/28" max
SPINDLE MOTOR:10 HP - 30 min/15HP cont
SPINDLE DRIVE SYSTEM:2 Speed Gear Box
AUTOMATIC TOOL CHANGER: Double 16 Tools
TOOL SELECTION:Bi-Directional Random
TOOL CHANGE TIME:8 Seconds Tool to Tool
MAX TOOL DIAMETER:3 3/4" with Adjacent Tools
MACHINE POWER SOURCE:208/220 Volts / 3 Phase
BALL SCREW DIAMETER:X,Y,Z 50mm
Flood Coolant System, Air Blast for Spindle, Auto Lube w/ Alarm,
Fully Enclosed Splash Guard, Screw Type Chip Conveyor, Halogen Work Lamp,
Turcite-B on 3 Axis, Gear Driven ATC's Instead of Geneva Drive and
Heat Exchange for Control Cabinet
Rigid Tapping, Controlled Axis: 3 Standard, Simultaneous Controllable Axis:
3 Standard, Multi-Quadrant Circular Interpolation, Auto Acceleration/Deceleration,
Dwell (G04), 480 IPM Rapid, Reference Point Return (G27,G28 & G29),
Second Reference Point Return, Coordinate System Setting (G92), Auto Coordinate System Setting,
Absolute/Incremental Command, Decimal Point Input, Optional Block Skip,
Skip Functions (G31), Tool Length Compensation (G43, G44 & G49),
Tool Offset Amount Memory (99 Pairs), Backlash Compensation (Max 255 Pulses),
Program Stop/Program End (M00, M01, M02 & M30), Incremental Feed (X1, X10, X100 & X1000),
Machine Lock (All Axis), Auxiliary Function Lock, Z-Axis Command Cancel, Dry Run, Single Block,

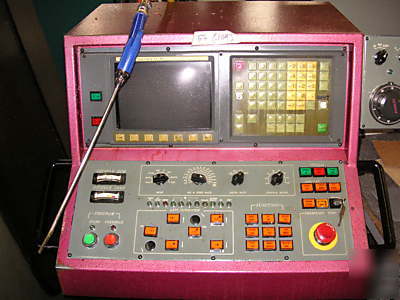

Mirror Image, MDI & CRT (9" Monochrome), Registrable Programs (63), Tape Storage Length (120m),
Data Protect Key, Self Diagnosis Function, Stored Stroke Check 1, Graphic Card and Graphic Display,
Inch/Metric Conversion, Cutter Compensation C, Program Input of Offset Amount,
Stored Pitch-Error Compensation, Run Hour/Number of Parts Display, Reader/Puncher Interface,
Work Coordinate System (G54-G59), Conventional Programming, Tool Length Measurement,
Reset, Background Editing and Helical Cutting.
****PLEASE NOTE THAT MACHINE IS SOLD WITH NO TOOLING OR TABLE FIXTURES****
