3AXIS TB6560 driver board NEMA17/23/34 stepper motor 3A

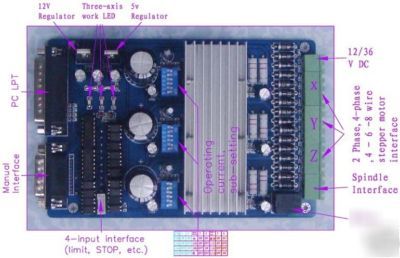

3 Axis TB6560AHQ Driver Board NEMA17/23/34 Stepper Motor
Toshiba TB6560AHQ chip - High power, maximum 3.5A drive current chipset!
1-1/16 microstep setting - Higher accuracy and smoother operation than standard 1, 1/2 step!
Adjustable 1.5A-3A drive current settings for each axis - 25%,50%,75%,100% of full current can be set for different stepper motors
Overload, over-current and over-temperature safety - Full protection for your computer and peripheral equipment!
On board current switching - Power output can be set according to specific user requirement!
Full closed-type optical isolation to protect the user's computer and equipment
4 channel inputs interface- Can be used for XYZ limit and emergency stop!
Professional design - Two stage signal processing with super anti- jamming!
Bipolar constant current chopper drive with non-resonant region - Controls motors smoothly through range without creep effect!
Four control inputs (divided into pairs of knives) - Allows setting of limit and emergency stop!
Universal architecture - Supports most parallel software MACH3, KCAM4 etc!
Power supply DC 12-36V (not included)
12-16V DC power supply for Nema 17 stepper motors
16-24V DC power supply for Nema 23 stepper motors
24-36V DC power supply for Nema 34 stepper motors
(High voltage will burn up the chips or stepper motors!!!)
Output current of the power supply can be calculated by the following expressions:
Output current = Rated current of your stepper motors * quantity + 2A
(For example, if you want to drive 3 * 3A Nema 23 stepper motors, theoretically 24V 11A DC power supply is recommended, but higher power such as 24V 15A also will be good.
If you are not sure about the selection of power supply, please feel free to contact us for help)
The power output of 12V shall be applied to the radiator fan of 12V
Driver output compatible with 2 or 4 phase, 4, 6 or 8 lead stepper motors, 3A max.
Suitable for unipolar or bipolar stepper motors.
Voltage regulated spindle speed controlled by parallel interface as function of supply voltage.
We Will delivery via courier,normal within a week!
>If you requires Airmail,please read this:About the Airmail,it is cheap but without tracking number,that means we both can't track it.It often takes 15-20days,maybe even longer!So during the delivery time,Please don't ask us where it is now. If you don't want to wait for so long time,we recommend you choose courier! If you insist on using Airmail,please consider it carefully and then contact with us!That means you are willing to take responsibility for it!
Electrical performance (ambient temperature Tj = 25 )
Input Power:12 - 36V DC power supply.
Output Current: 3A (peak 3.5A)
Drive Mode: Bipolar constant-current PWM driver outputs.
Drive motor: NEMA17/23/34 stepper motor, 2 phase/4 phase (4 wire/6 line/8 wire stepper motor)
1pcs 3 Axis TB6560AHQ Driver board;
1pcs DB25 Parallel Data Cable;
1 CD (Manual & Mach3 demo version)
