> New 4 axis cnc stepper motor TA8435H driver board brand
New 4 axis cnc stepper motor TA8435H driver board brand

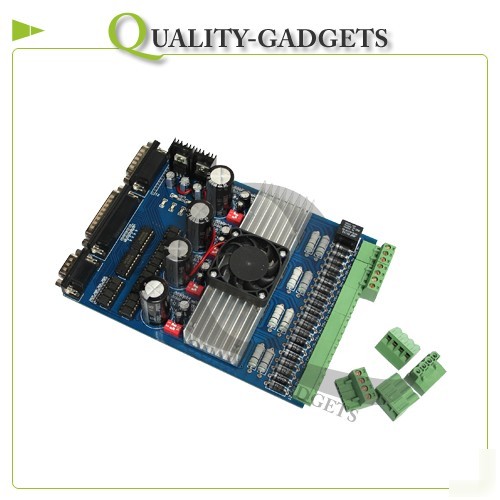

4 Axis CNC Stepper Motor TA8435H Driver Board Brand New
Only simple English Manual comes with this driver board, so you should know electronics if you want to purchase it, thank you !
The new design for the T8435: the 4 axis T8435 stepper motor driver . In adaption of the prono position 8435 chip , we install the larger thermal sink in the bottom, and adapt the FR307 heavy current diode. The new design of the wire-connection and the pin-insert, this two-way input design makes the connection more convenient.The semi-flow uses the 555 chip.
* Toshiba TA8435H chip - maximum 2.5A drive current !For TA8435H Data sheet, please clcik here
* Chip 555 adapts the SOP( SURFACE MOUNT)
* In application of the SMT solder-reflow technic.
* Add the 24V and 5V indication LED light
* Use the DCDC as the isolation of the front and the end power supplys, in order to protect the parallel ports
* The manual control connector and the limit connector use the DB15 and DB9 connection port support the relay extension
(For example, if you want to drive 3 * 1A Nema 23 stepper motors, theoretically 24V 5A DC power supply(at least) is recommended, but higher power such as 24V 10A also will be good.
* Also we have suitable power supply for selling, please feel free to contact us if you have any demands !
* The power output of 12 V shall be applied to the radiator fan of 12V.
* The interface of driver shall be connected with 2-phase, 4/6 wires stepper motor within 2A current
* This board can work with both unipolar and bipolar stepper motors
* The spindle motor is controlled by Parallel Interface. The voltage of the spindle motor must comply with the scope of the supply voltage.
* Support most parallel softwares KCAM4, MACH3 etc.
* For More Details, Please click to download English User Manual
* Power supply: 12V-24V DC, 5A
* Output current: peak value 2.5A per phase (2A recommended)
* Resolution setup: full step, 1/2, 1/4, 1/8
* Dimension: 18(L) x 13(W) x 3.6(H) cm
