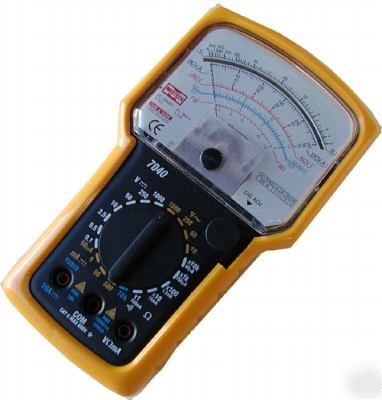

New mastech 20-range analog multimeter vom 7040
Mastech Analog Multimeter, 7040
Mastech Analog Multimeter 7040
* DC Voltage: 0~0.1, 0.5, 2.5, 10, 50, 250, 1000V (20Kohm/V) 3%f.s.
* AC Voltage: 0~10, 50, 250, 1000V (9Kohm/V) 4%f.s.
* DC Current: 0~50u, 5m, 50m, 500m, 10A 3%f.s.
* Resistance: 0~2K, 20K, 200K, 2M, 20Mohm 3% full arc (Arc lenght: 75.3mm)
* Continuity Buzzer Rx1 range 0~30ohm Sound
* Decibel 10-62dB (0dB/0.775V 1mW 600ohm)
* Fuse 0.5A/250V 5x20mm fast acting, 10A/250V 5x20mm fast acting
* Confirms to the EN61010/IEC1010 standard CATII 600V
* Power Supply: 1x 9V Battery 6F22, 2x 1.5V UM3
* Products Size: 190 105 50mm, Product Net Weight: 470g
