New 20 mhz dual trace oscilloscope hq
Car alarm system with back up battery siren, 2 points immobolizers, black wires
Different Tacho Meter with Shiftlight

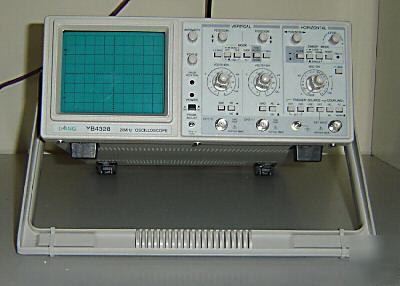

New YB4328 20 MHz Dual-Trace Oscilloscope
Highest Sensitivity up to 1mV/div (After Expand)
Full Band Trig Auto Sweep Circuit
Flex Trig Mode (Select CH1 or CH2 Signal /External Signal)
Alt-Trig View 2 Irrelative Signal
CH1, CH2 Output to Ext. Frequency Counter
5 mV/div ~ 10 V/div in 1-2-5 sequence, altogether 11 steps, Error +/- 5 %
1 +/- 5% M OHM// 30 pF (direct) 10 +/- 5% pF (by probe)
Min synchronized trigger level
Input implement (By EXT trigger)
AC: 10Hz ~ 1 MHz -3dB DC: 0 ~ 1 MHz -3 dB
Brand new YB4328 20 MHz Dual Trace Oscilloscope
