Kepco 0-1KV regulated high voltage dc lab power supply
KEPCO 0-1KV REGULATED HIGH VOLTAGE DC LAB POWER SUPPLY

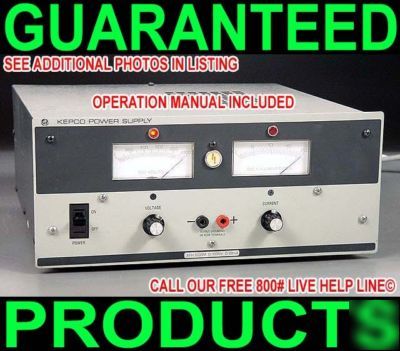

YOUR PURCHASE IS FOR A FULLY TESTED AND GUARANTEED, AMERICAN MADE, KEPCO BRAND, MODEL APH 1000M, 0-1000 VOLTS @ 0-20 MILLI-AMPS, PRECISION, BENCH / LAB, REGULATED, VARIABLE DC POWER SUPPLY WITH ANALOG VOLT / AMP METERING, WORKING PERFECTLY, IN EXCELLENT CONDITION, AND COMPLETE WITH A COPY OF THE INSTRUCTION MANUAL (SEE ALL OF THE PHOTOS FOR DETAILS).
THE KEPCO APH 1000M, IS A VARIABLE HIGH VOLTAGE PRECISION REGULATED DC LAB POWER SUPPLY THAT CAN BE UTILIZED FOR ANY HIGH VOLTAGE APPLICATION IN ELECTRONIC COMPONENT TESTING CIRCUIT DESIGN OR REPAIR.
THIS POWER SUPPLY PROVIDES A SINGLE, 0 - 1000 VOLTS @ 0 - 20 MILLI-AMPS OUTPUT WITH A VARIABLE TEN TURN CONTROL KNOBS FOR VOLTAGE AND CURRENT ADJUSTMENTS. THE DC SUPPLY PROVIDES, 0-1000 VOLTS @ 0-20 MILLI-AMPS, CONSTANT VOLTAGE AND / OR CONSTANT CURRENT (C/V, C/C).

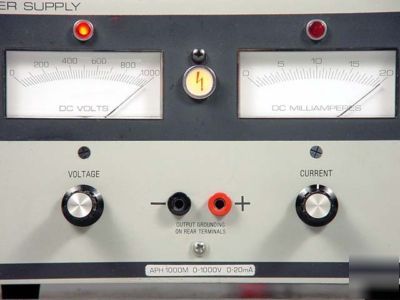

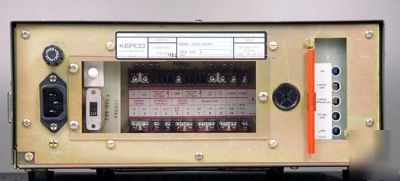

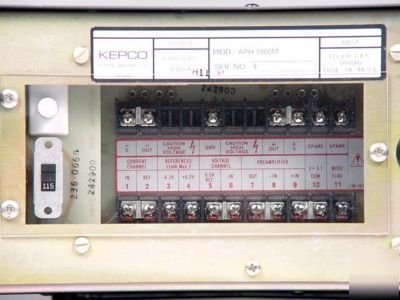

THE ANALOG METERS PROVIDE ACCURATE READINGS OF BOTH VOLTAGE AND CURRENT AND THE OUTPUT CONNECTIONS ARE STANDARD "BANANA" JACKS. IN ADDITION, REAR PANEL CONNECTIONS PROVIDE REMOTE SENSE AND VOLTAGE PROGRAMMING / TRACKING CAPABILITIES.
THIS IS THE IDEAL PIECE OF PROFESSIONAL TEST GEAR FOR YOUR BENCH TO CHECK OUT AND EVALUATE ANY ELECTRONIC OR ELECTRICAL EQUIPMENT THAT OPERATES ON VOLTAGES UP TO 1000 VOLTS AND DRAWS AS MUCH AS 20 MILLI-AMPS.
THE POWER SUPPLY ALSO IS IDEAL FOR ANY ELECTRONIC OR ELECTRICAL EQUIPMENT NEEDING HIGH VOLTAGE SUCH AS TWT'S, KLYSTRONS, MAGNETRONS, BACKWARD-WAVE OSCILLATORS, HIGH-POWER GAS LASERS, ELECTRON-BEAM WELDING DEVICES, ETC.
KEPCO MAKES SOME OF THE FINEST BENCH SUPPLIES IN THE WORLD AND THIS POWER SUPPLY PROVES IT!
THIS KEPCO APH 1000M FEATURES:
HIGH VOLTAGE PROGRAMMABLE OUTPUT.
VOLTAGE AND CURRENT STABILIZATION.
ANALOG PROGRAMMABLE 0-5V INPUT FOR VOLTAGE, 0-1V FOR CURRENT.
10-TURN PANEL CONTROLS OFFER EXCEPTIONAL RESOLUTION.
THE VOLTAGE RHEOSTAT CONTROLS AN OPERATIONAL PRE-AMPLIFIER WHICH PRODUCES A 0-5V D-C SIGNAL TO DRIVE A FIXED-GAIN VOLTAGE AMPLIFIER. FOR EXTERNAL CONTROL AN EXTERNAL 0-5V, 1MA SIGNAL CAN SUBSTITUTE FOR THE SIGNAL PRODUCED BY THE PREAMPLIFIER. TO USE AN EXTERNAL SIGNAL WITH A DIFFERENT RANGE, IT CAN BE PUT THROUGH THE UNCOMMITTED AMPLIFIER, WHICH WILL SCALE ANY SIGNAL TO THE 0-5V RANGE. THE UNCOMMITTED AMPLIFIER CAN BE PRECISELY ZEROED.
THE CURRENT RHEOSTAT CONTROLS CURRENT AS A DIFFERENTIAL COMPARATOR USING A 0-1V ANALOG OF THE OUTPUT CURRENT. A SEPARATE CIRCUIT IS PROVIDED FOR EXTERNAL CONTROL WITH A 0-1V SIGNAL.
FULL ZEROING AND CALIBRATING FACILITIES ARE PROVIDED IN BOTH THE VOLTAGE AND THE CURRENT CONTROL CHANNELS FOR COMPATIBILITY WITH THE KEPCO SN SERIES DIGITAL PROGRAMMING INTERFACES.
I AM SELLING THIS ITEM, FULLY GUARANTEED FOR $489.00. (THIS PRODUCT IS CURRENTLY SELLING FOR MORE THAN $1520.00!)
KEPCO APH 1000M 0-1000 VOLTS @ 0-20 MILLI-AMPS DC POWER SUPPLY B27-XXXX-42-WH
