Ih- farmall 340 & ih 460 two-point fast-hitch operators
McCormick and Farmall Model 340 Tractors
and I.H. International Harvester 340 - 460 Series Utility Tractors
This Operator's manual is for your McCormick and Farmall 340 and International Harvester 340 and 460 Series Utility Tractors equipped with the Two-Point Fast-Hitch (Tel-a-Depth and Traction Control). This is Form # 1-014-155-R1 with an original print date of August 28, 1959.
This Operator's Manual outlines ALL the basics you need to know about the daily operations of your Two-Point Fast-Hitch.
Introduction to your Fast-Hitch
Tel-a-Depth System, Traction Control, Hitch Sockets, Hydraulic Cylinders, Lift Links, Leveling Crank, and Hitch Bail.
Tel-a-Depth, Traction Control, Traction Control Guide Pointer, Hitch Unit adjsutments, Hitching, Rigid Hitch Position, Free-Float Position, Locking the Tel-a-Depth Handle, Belt Pulley Precautions, Check Valve, Rockshaft Slip Clutch, Standard Drawbar Height, Coupling and Uncoupling the Implement, Adjustments for Moldboard and Disk Plows, Fast-Hitch Load Limitations and Lubrication.
Includes VERY detailed step by step installation instructions as well as adjustments.
Extra Equipment and Accessories:
Drawbar Extension Plate, Filler Plates, Front end Weight, Drawbar Braces, Fast-Hitch Coupling Braces, Valve Cover with Lock-out Screw
You'll know every aspect of your Fast-Hitch from inside out with this manual. This is simply information you can't do without!

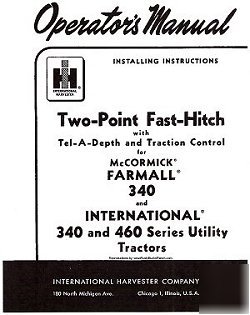

Photo depicts an actual page from the manual to demonstrate quality!! Image Hosted by Rusty Bucks Ranch Image Hosted by Rusty Bucks Ranch
The listed item is not copyrighted. This manual is public domain, original print date of 08-28-1959.
