1HP 220V 3 phase inverter converter dust & waterproof

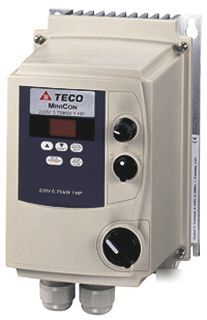

This totaly enclosed unit has a built in SPEED POT, OFF/FORAWD/REVERSE switch and a MAINS POWER SWITCH and is waterproof having an IP65 rating, It is designed to run a three phase motor from a single phase supply it also lets you control the speed from 1 RPM to twice the motors normal speed either by using the inbuilt POT, this is fantastic if you have the unit connected to say a lathe or milling machine as you have exact control over the machines speed, the max and min settings are programmable, you can also reverse the motor using the inbuilt switch,
It features a programable SOFT START to start up the motor in a preset time and this reduces the shock load on a machines belts/gearboxes and also reduces the power surge on the mains that can blow fuses without the SOFT START, the motor stop time can also be programed to stop a chuck within a few seconds if required using the braking function,
This unit will work with most types of motor but the motor has to be a dual voltage type in order to run at FULL POWER, you can normally see if your motor is this type by looking at the rating plate, if the voltage rating says 220/440 then your motor is compatable, if you have any worries about your motors compatability then please contact me and I will help you to check if your motor is OK for use with this unit,
The unit is brand new and boxed, if you are at all unsure about the wiring of this unit I will offer any help and advice required to get it connected and running in your application, its a compact unit with easy screw connections and input/output cable glands,
EXAMPLES OF EQUIPMENT OPERATED IN CONJUNCTION WITH ELECTRONIC INVERTERS are :-
