Power checked 90MW green dpss laser module 3V
Green Laser Module with 90mW Tested Output
This style of module is produced by the manufacturer with ratings between <5mW and <200mW, the actual output of the modules varies a lot but the external appearance is the same. We measure the power output of these modules and rate them: 4-5mW, 5-10mW, 10-20mW, 20-30mW, 30-40mW or for higher powers we give the actual power.
* Optical output of 90mW at 532nm (measured with an IR filtered Coherent laser power meter)
* Operating voltage: 3V (built in constant current driver circuit)
* Active switch (use a jumper wire to bypass switch for continuous operation)
* 11mm diameter x 63mm length
Note: If a laser module is described or labeled as output <50mW or <100mW this simply means the power is less than the stated maximum value. Often modules or lasers may have considerably lower optical outputs than the labeled value. We test and compare numerous modules before selecting which lines to sell and offer to exchange or refund any lasers that are not within 10% of the output described by us.
Safety Warning: This is a Class3B laser and should only be used by people aware of the hazards of intense laser light. It is sold as a component for for incorporation in equipment with suitable and adequate safety systems. Class 3B Lasers can cause damage to the eye by direct observation.

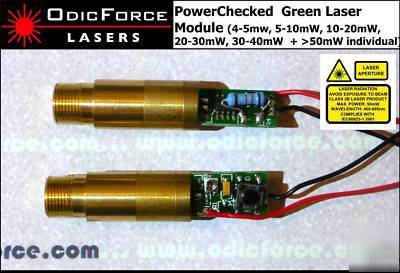

Example of Module Style (Note actual Power Output is as specified in the description)
