New 2 - toyoda ballscrew ball screw y z, axis

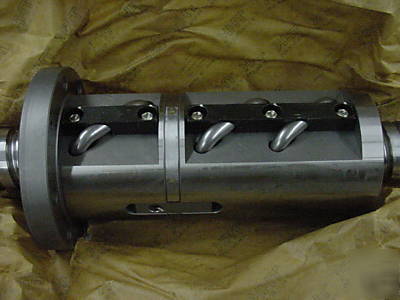

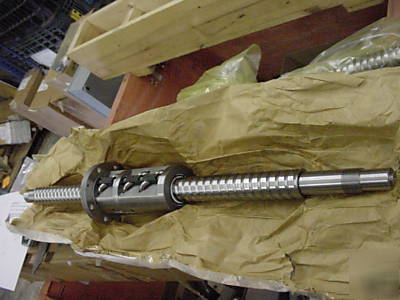

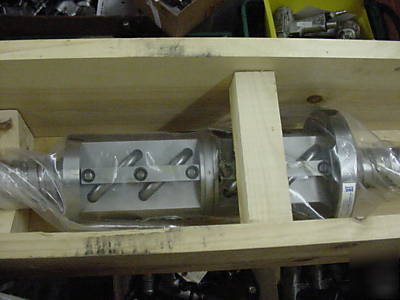

(1)- This is the repaired one, 50-91840041-0 Z Axis, Approx 50-1/4" long, Approx 1 7/8" diameter, Approx 2 turns per inch. Approx double nut diameter, 3-1/2", Approx double nut length, 10-3/4". Approx thread length, 42".

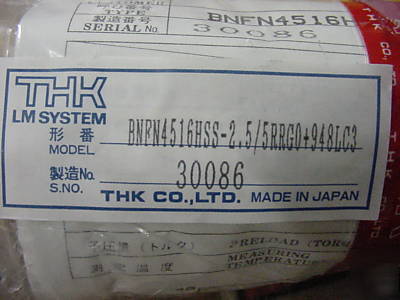

(1)- 50-91840021-0 Y Axis. THK # BNFN4516HSS-2.5/5RRG0+948LC3. Approx 37-1/4" long, Thread lenght approx, 29-3/4". Approx 1 7/8" diameter, Approx 2 turns per inch. Double nut approx 8-13/16" length. Double nut diameter approx 3-1/2".
