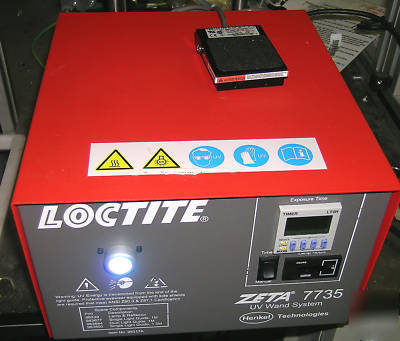

Loctite zeta 7735 henkel technologies uv wand system
The Loctite ZETA 7735 UV Wand System -IM utilizes a 50-watt mercury arc lamp, a universal power supply, and a liquid filled light guide (sold separately) to deliver up to 7 Watts/cm2 of UV light at 250-410 nm. It's state of the art lamp with an elliptical lamp reflector and custom coating delivers unequaled spectral and optical performance in the 50-watt category. This wand system bridges the gap between low intensity and high intensity spot curing products.
The key feature to this unit is continuous monitoring of changes in the intensity of the light produced by the curing lamp. It includes a built-in internal sensor to be used with the Loctite Intensity Monitor (item # 891494 (sold separately). When the intensity falls below a preset value, the system will:
Provide an output fault signal (open contacts) to a PLC or other external control device.
Turns on a red flashing LED on the Intensity Monitor.
Disables the wand shutter system.
The unit operates by engaging a foot switch that opens an internal shutter. The UV energy produced by the lamp is immediately transmitted through a flexible light guide. The time required to complete the curing process depends primarily on the distance from the end of the light guide to the surface of the adhesive and the type of adhesive used.

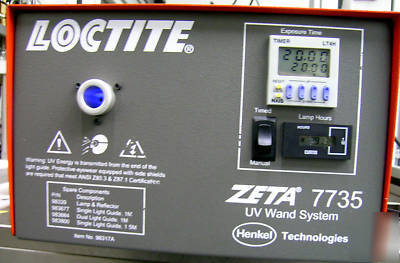

The exposure time can be controlled in either a manual or timed mode. In manual mode, the shutter will remain open as long as the foot switch is depressed. In timed mode, a momentary actuation of the foot switch starts the exposure cycle. The duration of exposure will depend on the setting of the new and improved timer that can range from 0-99.9 seconds. The Loctite Zeta 7735 UV Wand System -IM can also be actuated by external devices.
5 to 7 W/cm2 UV output with primary peak at 365 nm. #
UV spectral range of 250 410 nm.
Hour meter for monitoring accumulated lamp life
Manual or timed shutter light exposure, 0 to 99.9 seconds.
Manual selector switch for either 110 or 230 VAC operation.
Dimensions: 11.0" wide x 12.5" deep x 7.6" high
Operation Manual (free download PDF format)

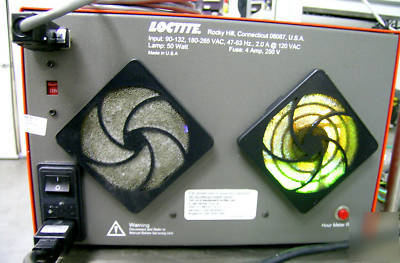

Power Supply: 90-132 or 180-265 VAC, 47/63 Hz.
