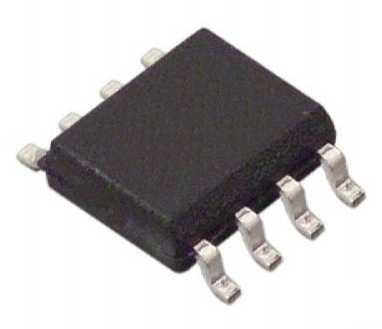

Ic chips: 1 pc AD8307AR low cost dc 500MHZ 92DB log amp
- Complete Multistage Logarithmic Amplifier
- 92 dB Dynamic Range: 75 dBm to +17 dBm
to 90 dBm Using Matching Network
- Single Supply of 2.7 V Min at 7.5 mA Typical
- DC-500 MHz Operation, 1 dB Linearity
- Slope of 25 mV/dB, Intercept of 84 dBm
- Highly Stable Scaling Over Temperature
- Fully Differential DC-Coupled Signal Path
- 100 ns Power-Up Time, 150 A Sleep Current
- Conversion of Signal Level to Decibel Form
- Transmitter Antenna Power Measurement
- Receiver Signal Strength Indication (RSSI)
- Low Cost Radar and Sonar Signal Processing
- Network and Spectrum Analyzers (to 120 dB)
- Signal Level Determination Down to 20 Hz
- True Decibel AC Mode for Multimeters
