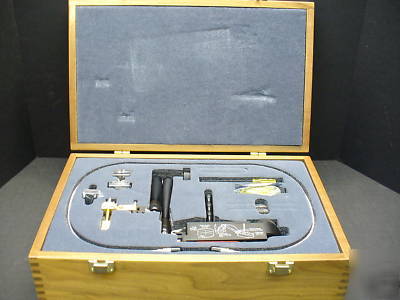

Agilent / hp N1020A tdr probe
The following is the information we have on the unit: Equipment came in a lot and has not been checked. No other information available on this unit.
The Agilent N1020A TDR Probe is a useful accessory when making Time Domain Reflectometry measurements on printed circuit boards. If no convenient method of connection is available, such as an SMA launch, then probing is the only viable solution. While most test engineers are very creative in designing and building the appropriate test fixture for each individual application, the TDR Probe is an off-the-shelf-solution.
When used in conjunction with the Agilent TDR Oscilloscope Family (Agilent 54750 or Agilent 83480), it provides X, Y and Z positioning in one fluid motion. Its unique 3-D joystick has a 3:1 motion reduction with a fully articulating arm and allows simple positioning in anything from card cages to microstrip-line. If your test tasks get you into some tight spots, the TDR probe gives you a hands-free solution.
Stable and accurate measurements
Reliable and repeatable positioning
Wide bandwidth characteristics
Faster setup than X-Y-Z positioners
Minimizes damage to components
