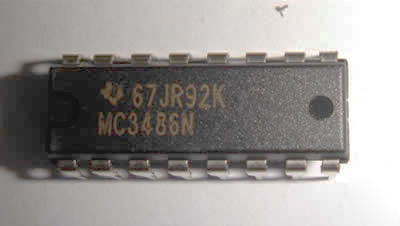

Ic chips: 1PC MC3486N mono quad line receiver w.3-state
- The MC3486 is a monolithic quadruple differential line receiver designed to meet the specifications of ANSI
Standards TIA/EIA-422-B and TIA/EIA-423-B and ITU Recommendations V.10 and V.11. The MC3486 offers
four independent differential-input line receivers that have TTL-compatible outputs. The outputs utilize 3-state
circuitry to provide a high-impedance state at any output when the appropriate output enable is at a low logic
- The MC3486 is designed for optimum performance when used with the MC3487 quadruple differential line
driver. It is supplied in a 16-pin package and operates from a single 5-V supply.
- The MC3486 is characterized for operation from 0 C to 70 C.
