Amprobe digital volt-ohm multimeter model am-12

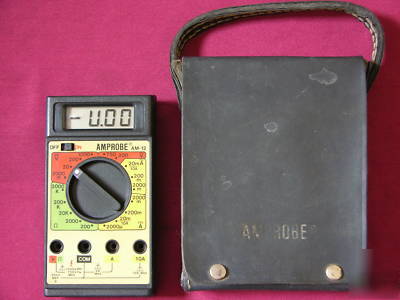

This is an Amprobe 3-1/2" Digit Digital Volt-Ohm Multimeter Model AM-12. No test Leads. Comes with carrying case. First digit number does not complete light up .
Ruggedized Digital Multimeter Amprobe #AM-120
Performance Characteristics of the AM-12Form Factor Handheld
Number of Digits (Max) 3.5 digits
DC Volts Minimum Range 1999 mV
DC Volts Maximum Reading Rate 2.5 pt/sec
DC Volts Basic 1 yr accuracy 0.5 %
AC Volts Minimum Range 199.9 V
AC Volts Maximum Reading Rate 2.5 pt/sec
AC Volts Basic 1 Year Accuracy 1.5 %
DC Current Minimum Range 1999 uA
DC Current No. of Ranges 5 QTY
DC Current Range Steps 1/10/100
DC Current Maximum Reading Rate 2.5 pt/sec
DC Current Basic 1 yr accuracy 1.5 %
AC Current Minimum Range 19.99 mA
AC Current No. of Ranges 4 QTY
AC Current Range Steps 1/10/100
AC Current Maximum Reading Rate 2.5 pt/sec
AC Current Basic 1 Year Accuracy 2 %
Resistance Minimum Range 199.9 Ohm
Resistance Maximum Range 1999 kOhm
Resistance No. of Ranges 5 QTY
Resistance Range Steps 1/10/100
Resistance Minimum Resolution 0.1 Ohm
Resistance Maximum Reading Rate 2.5 pt/sec
Resistance Basic 1 yr accuracy 1.0 %
AM-12 Power RequirementsInput Power Battery Powered
