Alphastep vexta ASC46AK closed loop step motor & driver
AlphaStep Vexta ASC46AK Closed Loop Step Motor ASM46AK and Driver ASD18A-K
The AlphaStep is a revolutionary hybrid stepping motor and driver package which elminates missed steps; a common problem with step motors.
* Low vibration at low speed

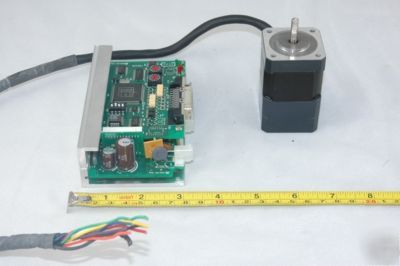

You will received this item as pictured. No accessories other than those mentioned or pictured in the listing will be included.
250 kHz (When the pulse duty is 50%)
[Motor] Class B [266 F (130 C][UL/CSA: Recognized as Class A 221 F (105 C)]
[Motor] 32 F ~ 122 F (0 C ~ 50 C) (nonfreezing)
[Driver] 32 F ~ 104 F (0 C ~ 40 C) (nonfreezing)
Sufficient to withstand the following for one minute: Frame-Windings 0.5 kV 50 or 60 Hz
Sufficient to withstand the following for one minute: Heat sink-Power supply input terminal 0.5 kV 50 or 60 Hz
100 M minimum when measured by a 500 VDC megger between the Frame-Windings
100 M minimum when measured by a 500 VDC megger between the Heat sink-Power supply input terminal
Resolution (Resolution Setting: 1000 P/R)
