100 hp dc drive pkg. drive, reactor, contactor & fuses

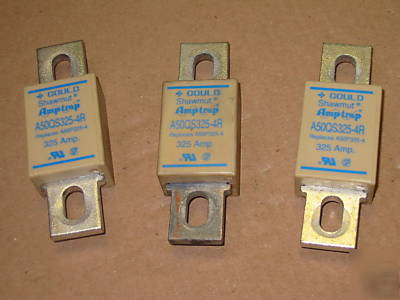

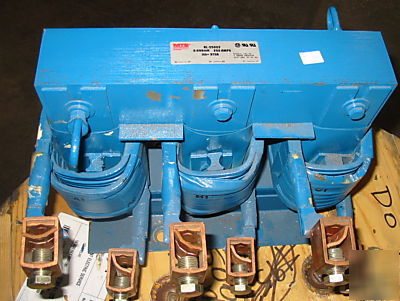

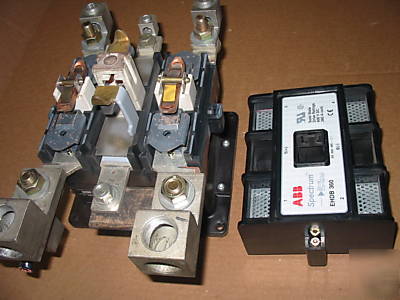

For sale, two 100 HP dc motor drive packages. Each package comes complete with a Mentor II M4000 DC drive, an ABB EHDB 360 contactor, a MTE RL-25002 reactor, and three A50QS325-4R fuses.
We are selling the two packages for $3195.00 each.

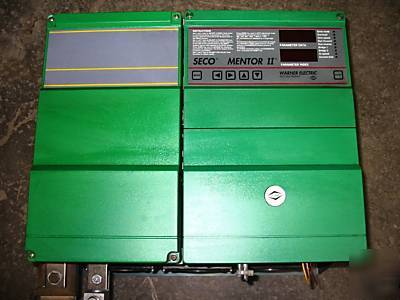

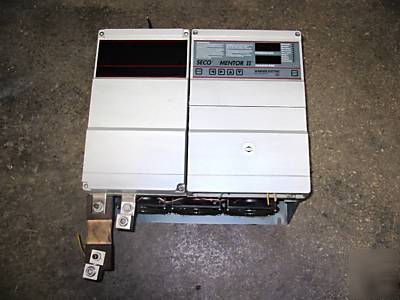

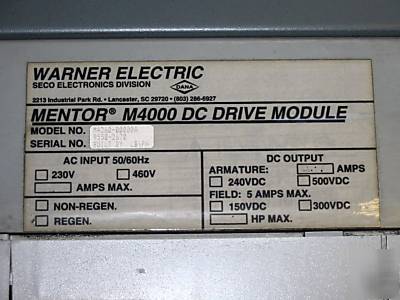

Here is some info about the components. The model number of the green drive is M421A, the model number of the grey drive is M4260. If you have any questions or would like to see additional pictures. Please don't hesitate to ask.
Any 50/60Hz AC voltage up to 480V.
Output - 250/350 Volts 350 Amps
200V min. to 430V max., depending on supply voltage.
Single phase AC 50HZ - 380V/440V+10%, and 220V/254V+10% 60Hz - 460V/480V+10%
220V to 600V DC. Must be protected by external fuses, max. rating 2A.
UP to 20A, depending on configuration of output, half, or full-controlled.
Single phase input, asymmetrical 2-SCR half-controlled output. Single phase input, symmetrical 4 SCR full-controlled output.
Voltage 250V AC, 50V DC Current 3.5A max. Switching 1000VA max., 200W max.
600 VDC making capacity: 300 VDC breaking capacity
1 N.O. & 1 N.C. auxiliary contacts are standard and up to six additional auxiliary contacts may be added to provide a total of 8 (4 N.O. & 4 N.C.)
Early make & late break auxiliary contacts available
Auxiliary contacts available to meet elevator standards
EHDB 220, 280 & 360 contactors have withdrawable coils
Mechanically interlocked contactors available for reversing applications
Double break contact design with magnetic arc chamber extinguishes arc in shortest possible time
High temperature encapsulated coil
Easy removal of arc chute for quick inspection and change of contacts
Operates over an extended voltage range of 85% to 110% of rated control voltage
DC control operation available
UL & CSA approved UL File # E79416 CSA File # LR19700
Gould / Ferraz / Shawmut: A50P325-4
