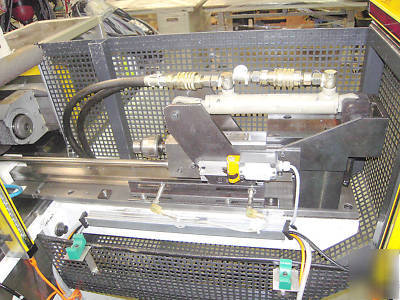

New pee wee P20 cnc thread roll former, 2002

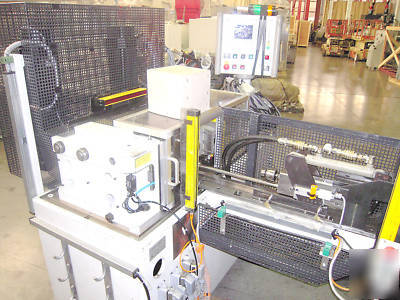

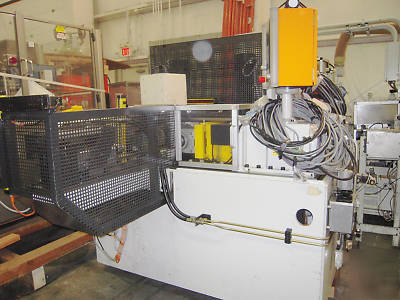

Pee Wee P20 CNC Thread Roll Former, New 2002

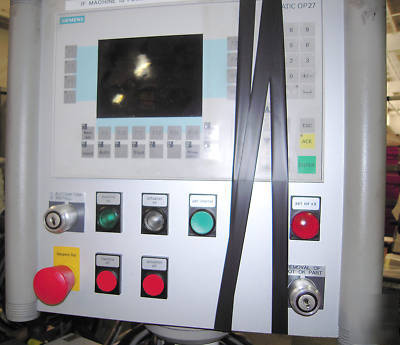

Siemens Simatic Control, 2 In.Cap., 20 Ton, 2-Die Head, 2-1/8 In. Spindle Dia., 6In. Max Infeed
Height of rollspindles above machine bed: 160 mm

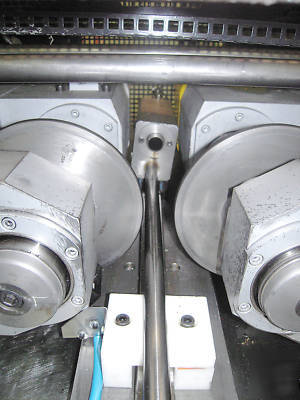

Smallest distance between rolling spindles: 130 mm
Biggest distance between rolling spindles: 280 mm
Tool diameter: (max) 210 mm, (min) 130 mm
Spindle diameter (standard) 80 mm, (sonder) 54 mm
Acceptance length of spindles: 200 mm
Smallest rollable diameter ca: 5mm
Length of thread infeed system (max) 180 mm
Pivoting angle of rollspindles (type SR): +/-8 degrees
Feed of slide (max): 50 mm/sec
Dims (mm) 1660L x 729W x 1545 H, 6295 lbs
