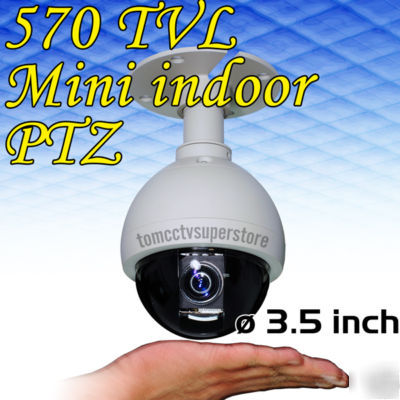

Hi speed 570TVL cctv 10X optical indoor mini ptz camera
This dome device is a hi-tech monitoring product integrating high-resolution color camera and multi-function decoder, which minimizes the wiring and installation process and enhances the reliability of the system as well as facilitates installation and maintenance. It has the advantages of elegant appearance, flexibility, simple operation and high compatibility.
1. Integrated multi-protocol decoder
The build-in communication decoder integrates the communication protocol of Pelco_D or P with baud rate from 2400bps to 19200bps (can be realized by setting the position of dip switch inside the dome device)
RS485 communication control; the range of dome address id 0~255.
2. Integrated swivel and tilt movement
Pan rotation is 360 endless; Tilt movement is 0~90 , by using the key boards speed can be adjustable from 0.1~240 /s.
The low speed running is stable with ultra-low noise and without image shake.
By pushing down the Joystick till the point of 90 the camera will auto lift up 10 degree. Monitoring all directions with 0.1 precision.
128 preset positions: All data of preset position will be saved on time and will not be lost when power is suddenly off.
Free selection of Pan scan direction: Support the Pan scan with the shortest distance between two points (scan speed: 0.1~100 /s, variable speed selection available). Besides, tilt movement can be achieved manually at the same time.
Power off memory: If the power is suddenly off when the dome device is in operation pan scan or tour, the dome device will resume the Pan scan or tour when the power is on again.
Home position function: The time of Home position can be set. If the dome device does not receive and control within preset time duration, the come will return to the preset position of number 1 . (Home position)
Intelligent three-dimension tour scan: When monitoring manually by means of joystick, the dome unit automatically continues the rotation and tilt operation.
X10 Optical Zoom and X10 Digital Zoom
0.7 Lux (Color) / 0.002 Lux (B/W) @ 50 IRE
Auto / Day / Night (IR Cut Filter)
Auto / Manual (Red & Blue Gain Adjustable)
Pan : 360 Tilt : 180 (Auto-Flip On) , 90 (Auto-Flip Off)
Image Auto Flip, Auto Parking, Power-up Action, Heater and Fan built-in
