Svmi MB63 multi spindle drill

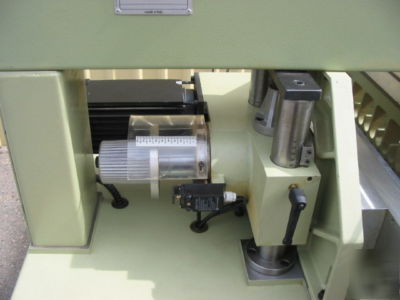

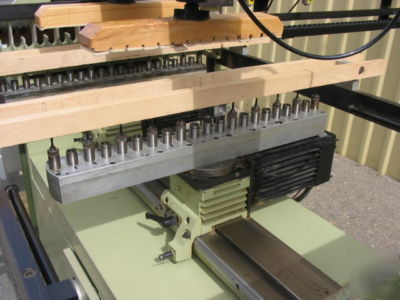

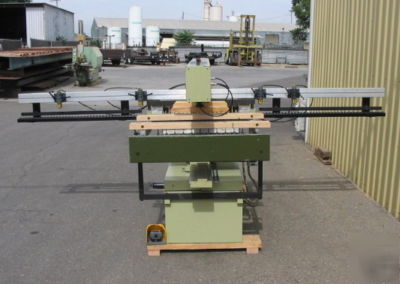

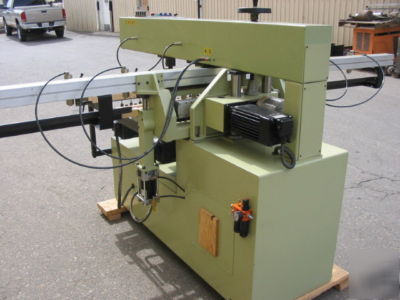

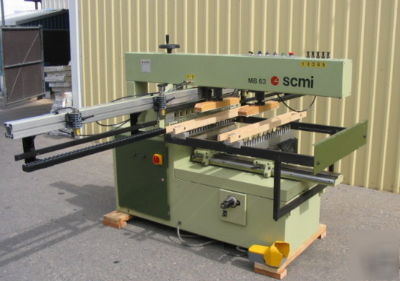

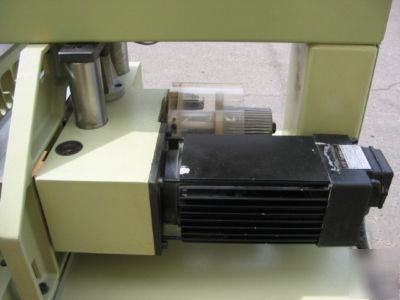

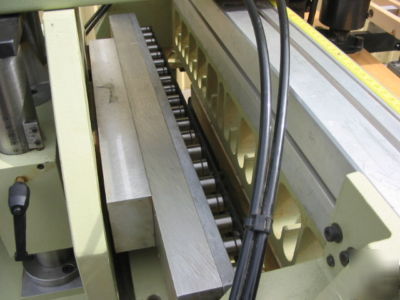

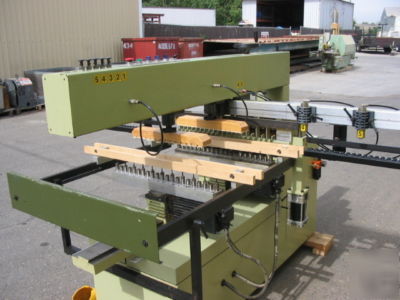

Used SCMI Multi-Spindle Boring Machine, Model MB63 . Unit consists of three boring heads (one horizontal and two vertical, each with 21 spindles on 32mm centers). Heads have threaded chucks with quick change adapters. Two horizontal motors are 3 hp and one vertical motor at 2 hp.
Mounted on (2) heads @ 21 spindles per head.
Max height of horizontal boring 50 mm
Chucks for threaded adapters - M10x1.5 BITS (right and left) standard
Working pressure 6 Bar (87 psi)
Air consumption / cycle 17 NI/min (0.6 scfm)
Net weight: 690 kg (1,518 lbs)
Overall dimensions: 1870x3200x1700 mm (74x 126 x 67)
