> New rittal SK3218.100 air/water heat exchanger,
New rittal SK3218.100 air/water heat exchanger,

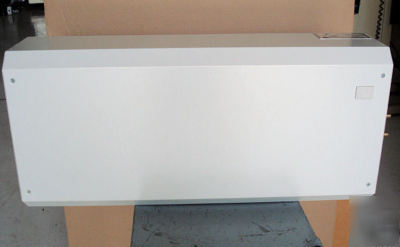

RITTAL SK3218.100 Air/Water Heat Exchanger, New
Type: Wall Mount, (no hardware or manual),
P/N 15857, Mfg. Date: 17.07.06
http://www.rittal.no/services_support/downloads/pdf/rittal_assem_sk_air_water_hx_3217_3218_3247_3249_0000_0000.pdf

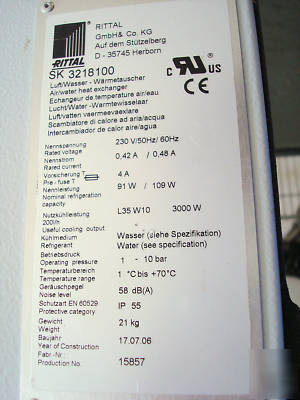

* Rated Voltage: 230V~, 50/60 Hz, Rated Current: 0.42A / 0.48A,
* Pre Fuse T: 4 amp, Nominal Refrigeration capacity: 91W/ 109W
* Useful cooling output: L35W10 / 3,000 W @ 200 1/h
* Operating Pressure: 1-10 bar, Temp Range - 1 deg "C" bis + 70 deg "C"
* Protective category: IP 55, Noise Level: 58 dB (A)
Dimension: 39" L x 8" W x 16" High.
Feel free to contact us if you have any more questions
