Dso 100MHZ/2-ch/1GSA/s oscilloscope rigol DS1102E

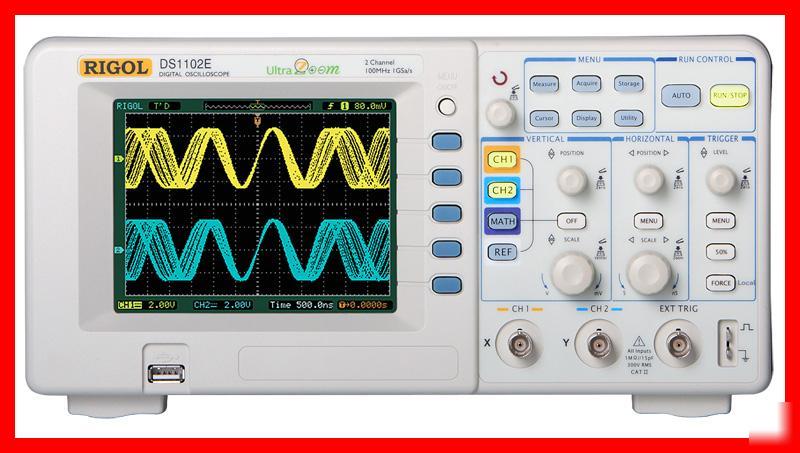

DSO 100MHz/2-CH/1GSa/s Digital Storage Oscilloscope RIGOL DS1102E
Dual analog channels and 16 channels logic analyzer, 100MHz maximum bandwidth, 1GSa/s maximum real-time Sample rate and 25GSa/s maximum equivalent Sample rate
5.6 inch and 64 k TFT LCD make the waveform displays more clear and vivid
Abundant trigger types: Edge, Pulse Width, Video, Slope, Alternate, Pattern and Duration
Unique adjustable trigger sensitivity enables to meet different demands
Enable to measure 20 types of wave parameters and track measurements via cursor automatically
Unique waveform record and replay
All specifications apply to DS1000E, DS1000D Series Oscilloscopes unless where noted. To come up to these specifications, two conditions must be met firstly:
The instrument must have been operated continuously for 30 minutes under the specified operating temperature.
Do perform Self-Calibration operation through the Utility menu if the range of operating temperature variations up to or more than 5 C.
NOTE: All specifications are guaranteed unless where marked typical .
1 GSa/s each channel 500 MSa/s dual channels
USB Host & Device, RS-232, P/F Out
Width Height Width 303mm 154mm 133mm
Probe 2 (1.5m), (1:1 or 10:1 adjustable) Passive Probes
A Power Cord that fits the standard of destination country
An Active Logic Head (DS1000D series)
20 Logic Testing Nips (DS1000D series)
20 Logic Testing leads (DS1000D series)
A CD-ROM (including User s Guide and Application Software)
For the copy of complete warranty statement or maintenance, please contact with your nearest RIGOL sales and service office.
RIGOL do not provide any other warranty items except the one being provided by this summary and the warranty statement. The warranty items include but not being subjected to the hint guarantee items related to tradable characteristic and any particular purpose. RIGOL will not take any responsibility in cases regarding to indirect, particular and ensuing damage.
*Now you are interesting in a professional device, please be equipped with basic knowledge to the device. Or, feel free to ask us or seek the website of technical support from the manufacturer.
*If you have any problem or requirement when using products, please visit below website for more information
*Specifications and other information are subject to change without further notice
*If it is necessary please go to download the updated software from the website of manufacturer.
