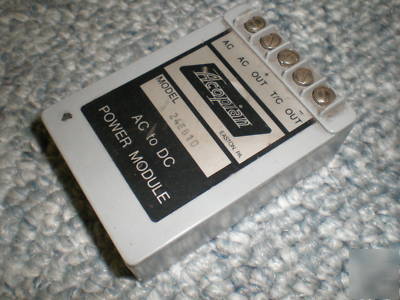

> Acopian 24VDC output .05%ac to dc power module 24EB10
Acopian 24VDC output .05%ac to dc power module 24EB10
ACOPIAN AC TO DC POWER MODULE 24 VDC OUTPUT
Input Voltage: 105-125 VAC, 47 to 420 Hz, single phase.
Output Voltage Setting: Outputs are factory preset to within 1% (24VDC) of the nominal output voltage.
T/C terminal: The T/C terminal can be used to trim the output more precisely to the nominal voltage rating by connecting an external resistor from the T/C terminal to either the + or - terminal.
Polarity: Either positive or negative terminal may be grounded.
Ambient Operating Temperature: -20 to +71 C. No derating required.
Temperature Coefficient: From 9 to 75 volts, typically 0.015%/ C; 1 to 8 volts, 0.03%/ C.
Impedance: 0.07 ohms at 1 kHz and 0.2 ohms at 10 kHz (approx.)
Case | Rough | Approx.
Size | Dimensions (inches) | Weight
EB-10 1.4 x 2.5 x 3.5 15 oz.
